sale
Marathon

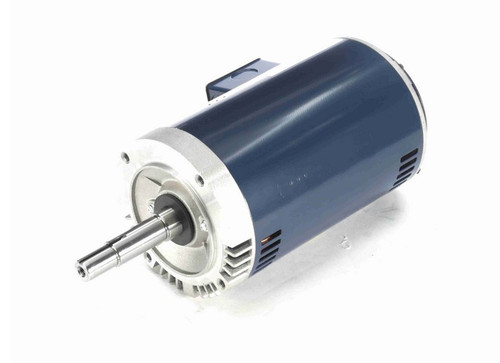

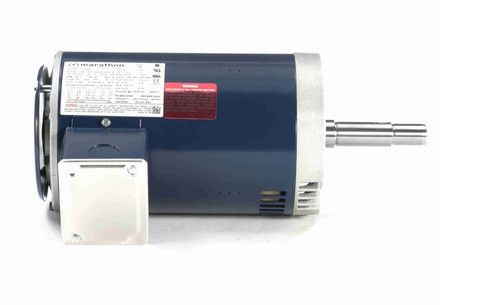

GT4104 Marathon 1/2 hp 3 phase 1800 RPM 145JMV Frame 230/460V ODP Marathon Close Couple Motor
(No reviews)
Write a Review
Write a Review
Marathon
GT4104 Marathon 1/2 hp 3 phase 1800 RPM 145JMV Frame 230/460V ODP Marathon Close Couple Motor
$490.36
$437.12
SKU
MGT4104
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage
230/460V
Horsepower
1/2 HP
RPM
1800
Phase
Three Phase
Frame
145JMV
Enclosure
ODP
Hertz
60 Hz
Amperage
4.4/2.2 Amps
Bearings
Ball Bearings
Insulation Class
Class F
Mounting
C-Face
Duty
continuous duty
- 1 1/2 hp 1800 RPM 4.4/2.2 amps 230/460 Volts 60hz. 3 phase motor

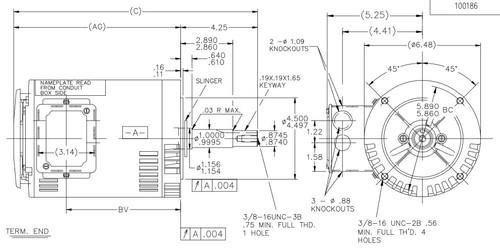

- NEMA 145JMV frame has vertical drip-cover, C-face, Internal threaded shaft 7/8" diameter x 2 1/4"
- Service Factor = 1.15, Overload protection = None
- Reversible, Rigid Base Mount, Ball bearings, Class F insulation
- One Year Manufacture Warranty
Designed for continuous duty service on close coupled pumps. Motor has rigid base with JM shaft. ODP = Open drip proof, Wiring diagram on motor name plate. 145TTDR16329
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM |
| Voltage | 230/460V |
| Horsepower | 1/2 HP |
| RPM | 1800 |
| Phase | Three Phase |
| Frame | 145JMV |
| Enclosure | ODP |
| Hertz | 60 Hz |
| Amperage | 4.4/2.2 Amps |
| Bearings | Ball Bearings |
| Insulation Class | Class F |
| Mounting | C-Face |
| Duty | continuous duty |
