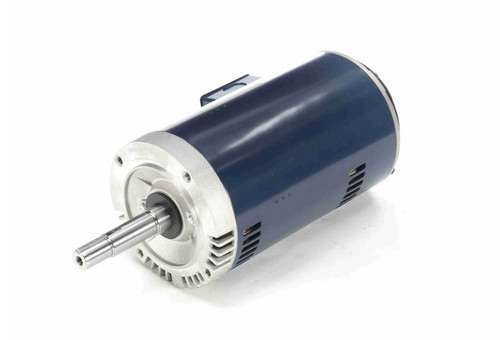

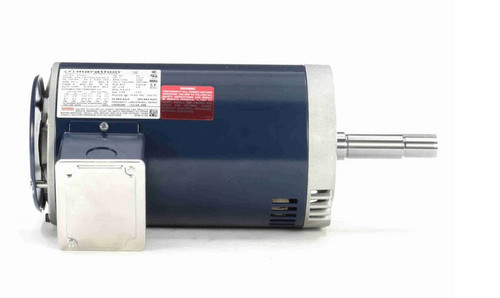

GT4107 Marathon 2 hp 3 phase 1800 RPM 145JMV Frame 230/460V ODP Marathon Close Couple Motor

GT4107 Marathon 2 hp 3 Phase 1800 RPM 145JMV Frame 230/460V ODP Marathon Close Couple Motor

This Marathon 2 horsepower, 3-phase motor is designed for continuous duty service on close coupled pumps. It is a reliable replacement motor featuring a NEMA 145JMV frame and suitable for various industrial and HVAC applications requiring robust performance.

Key Specifications

• Horsepower: 2 hp
• RPM: 1800
• Voltage: 230/460 V
• Amperage: 6.0/3.0 A
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: 145JMV
• Shaft Dimensions: 7/8" diameter x 2 1/4" length, internal threaded
• Rotation: Reversible
• Bearings: Ball bearings

Product Features & Fitment

The motor features a vertical drip cover and a C-face mounting configuration without a base, designed specifically for close coupled pump installations. It includes a JM shaft and a wiring diagram located on the motor nameplate for ease of installation and maintenance. The motor is built with Class F insulation and a service factor of 1.15, but does not include overload protection.

Warranty

1 Year Manufacturer Warranty
