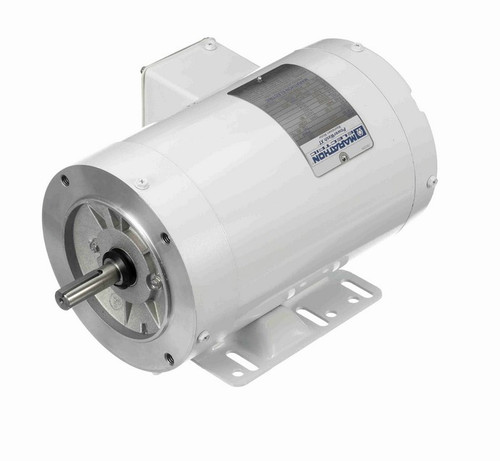

N605 Marathon 1 1/2 hp 3600 RPM 3-Phase 56C Frame TENV (with base) 230/460V Marathon Motor

SKU:
N605
Weight:
43.00 LBS
Shipping:
Free Shipping
ON SALE:
LIMITED TIME DISCOUNT
Was: $613.33
Now: $557.57
  • 1 1/2 hp 3600 RPM, 3.8/1.9 amps 230/460 Volts 60hz. 3 phase
  • NEMA 56C frame, C-face, Stainless Steel Keyed Shaft 5/8" Diameter x 1 7/8"
  • Service Factor: 1.15, Overload protection = None
  • Rigid Base, Reversible, Ball Bearings, Class F Insulation
  • 1 Year Manufacture Warranty

Wash-down motors are use in applications exposed to fresh water washings. This is a single phase electric motor with a C-face mount. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8" on center measured across the shaft. Wiring diagram on motor name plate. TENV = Totally Enclosed Non-Ventilated. 056T34V5308
