D390 Marathon 1/3 hp 3600 RPM 3-Phase 56C Frame TENV (base) 208-230/460V Marathon Motor

D390 Marathon 1/3 hp 3600 RPM 3-Phase 56C Frame TENV (base) 208-230/460V Marathon Motor

The D390 Marathon motor is a general-purpose 1/3 horsepower, 3-phase electric motor designed for various industrial applications. It features a NEMA 56C frame with a C-face mount, suitable for replacing or upgrading motors requiring a keyed shaft and removable base.

Key Specifications

• Horsepower: 1/3 hp
• RPM: 3600
• Voltage: 208-230/460 V
• Amperage: 1.6-1.8/0.9 A
• Enclosure: Totally Enclosed Non-Ventilated (TENV)

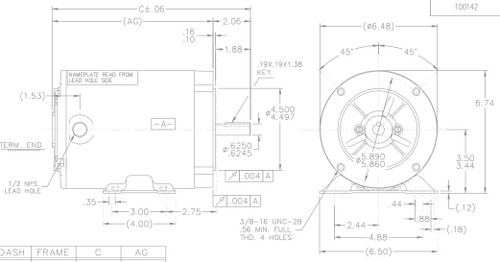

• Frame / Diameter: NEMA 56C frame
• Shaft Dimensions: 5/8" Diameter x 1 7/8" Length, keyed shaft
• Bearings: Ball Bearings

Product Features & Fitment

This motor includes a removable base and is reversible for flexible installation. The shaft has a keyway and the motor face features four threaded bolt holes spaced 5 7/8" on center across the shaft, allowing easy mounting of pumps or gear heads. Wiring diagrams are provided on the motor nameplate for straightforward electrical connections.

Warranty

1 Year Manufacturer Warranty
