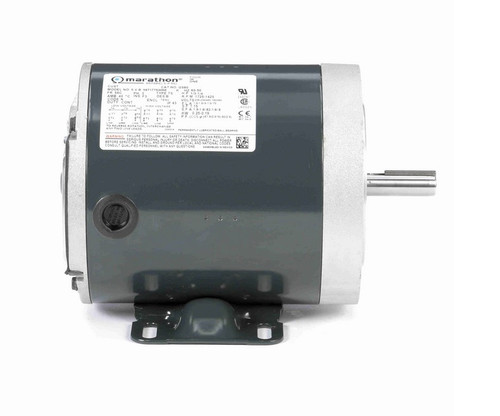

G580 Marathon 1/3 hp 1800 RPM 3-Phase 56C Frame TENV (base) 208-230/460V Marathon Motor

G580 Marathon 1/3 hp 1800 RPM 3-Phase 56C Frame TENV (base) 208-230/460V Marathon Motor

The G580 Marathon motor is a general-purpose, three-phase electric motor designed for a variety of industrial applications. It features a NEMA 56C frame with a C-face mount, suitable for direct coupling to pumps, gear heads, or other equipment requiring a keyed shaft.

Key Specifications

• Horsepower: 1/3 hp
• RPM: 1800
• Voltage: 208-230/460 V
• Amperage: 1.6-1.8/0.8 A
• Enclosure: Totally Enclosed Non-Ventilated (TENV)
• Frame / Diameter: NEMA 56C
• Shaft Dimensions: 5/8" Diameter x 1 7/8" Length, keyed
• Bearings: Ball Bearings

Product Features & Fitment

This motor includes a removable base and is reversible for flexible installation. The shaft features a keyway and the C-face mount has four threaded bolt holes spaced 5 7/8" on center across the shaft, allowing easy attachment of pumps or gear heads. Wiring diagrams are provided on the motor nameplate for straightforward electrical connections.

Warranty

1 Year Manufacturer Warranty
