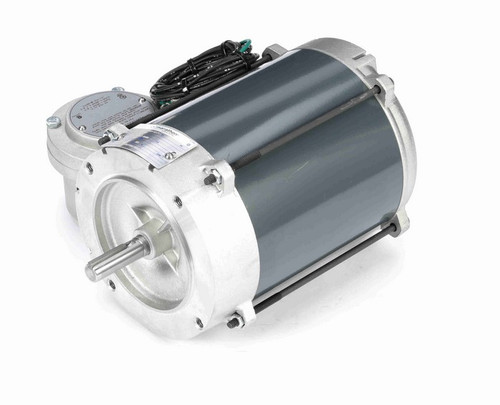

G828 Marathon 1/3 hp 1800 RPM 3-Phase 56C Frame TENV (no base) 208-230/460V Marathon Motor

G828 Marathon 1/3 hp 1800 RPM 3-Phase 56C Frame TENV (no base) 208-230/460V Marathon Motor

This Marathon 1/3 horsepower, 1800 RPM, 3-phase electric motor is designed for industrial applications requiring reliable, explosion-proof performance. It is suitable for replacing or installing in equipment needing a NEMA 56C frame motor with a C-face mount and keyed shaft.

Key Specifications

• Horsepower: 1/3 hp
• RPM: 1800
• Voltage: 208-230/460 V
• Amperage: 1.2-1.2/0.6 A
• Enclosure: Totally Enclosed Non-Ventilated (TENV)
• Frame / Diameter: NEMA 56C
• Shaft Dimensions: 5/8" Diameter x 1 7/8" Length, keyed
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a C-face mount with four threaded bolt holes spaced 5 7/8" on center across the shaft, allowing easy attachment of pumps or gear heads. It includes a keyed shaft for secure coupling and has an auto overload protection system. The motor is supplied without a base and includes a wiring diagram on the nameplate for straightforward installation.

Warranty

1 Year Manufacturer Warranty
