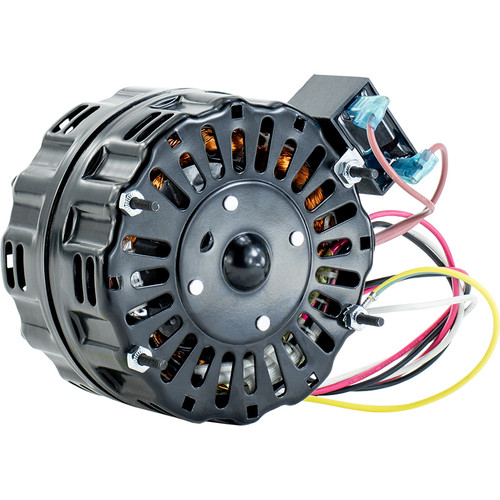

Fasco D177, McMillan 6125-366/6, VQT-400 Replacement Electric Motor

Fasco D177, McMillan 6125-366/6, VQT-400 Replacement Electric Motor

This 1/10 HP, 2-speed electric motor is a direct OEM aftermarket replacement designed for HVAC and industrial applications. It is compatible with models such as Fasco D177, McMillan 6125-366/6, Dayton 48GN86, and other VQT-400 variants.

Key Specifications

• Horsepower: 1/10 HP
• RPM: 1050
• Voltage: 115 Volts, 60 Hz
• Amperage: 1.5 Amps
• Enclosure: Open Ventilation (Air Over)
• Shaft Dimensions: 3/8" diameter x 3 5/8" length
• Rotation: Counterclockwise (CCW) Shaft End
• Bearings: Sleeve Bearings

Product Features & Fitment

This motor features a 2-speed design with high and low speed settings for versatile operation. It mounts using four studs opposite the shaft, spaced 2.5" x 4.0", with a motor length (excluding shaft) of 3". The new PSC design enhances energy efficiency. A 5 MFD/370 VAC capacitor is required and included for proper operation.

Cross Reference

• Fasco D177, 7151-3928
• McMillan 6125-366/6
• Misc VQT-400, VQT400
• Dayton 48GN86

Warranty

1 Year Manufacturer Warranty
