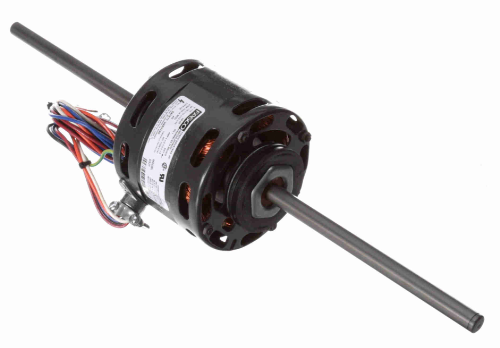

Fasco D337 Motor | 1/10 hp 1550 RPM 3-Speed 4.4" Diameter 115 Volts

Fasco D337 Motor | 1/10 hp 1550 RPM 3-Speed 4.4" Diameter 115 Volts

The Fasco D337 is a versatile 1/10 horsepower shaded pole motor designed for fan coil air conditioning units and unit heater fans. It serves as a reliable replacement motor with three-speed operation and open ventilation for air-over applications.

Key Specifications

• Horsepower: 1/10 hp
• RPM: 1550
• Voltage: 115 Volts
• Amperage: 4.1 amps
• Enclosure: Open Ventilation, Air Over
• Frame / Diameter: 4.4" diameter
• Shaft Dimensions: Double shaft, 7 1/2" x 1/2" x 7 1/2"
• Bearings: Sleeve Bearings

Product Features & Fitment

This motor features a belly band or stud mount with a bolt circle diameter of 3.89", allowing for flexible installation options. The motor length excluding shafts measures 3 5/8", facilitating fitment in compact spaces. Its shaded pole design ensures quiet and efficient operation in HVAC applications.

Warranty

1 Year Manufacturer Warranty
