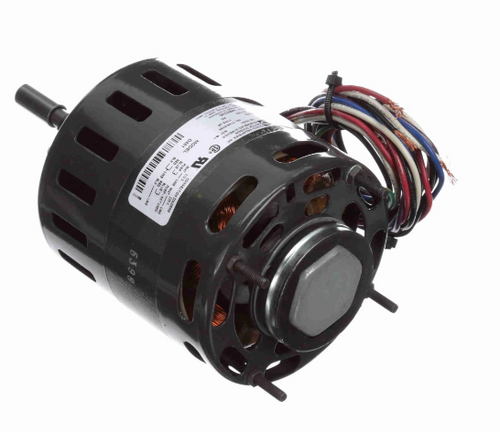

Fasco D481 Motor | 1/10 hp 1550 RPM CCW 4.4" Diameter 115/208-230 Volts

Fasco D481 Motor | 1/10 hp 1550 RPM CCW 4.4" Diameter 115/208-230 Volts

The Fasco D481 is a shaded pole refrigeration fan motor designed for reliable operation in refrigeration and HVAC applications. It serves as a direct replacement for various G.E., Emerson, Universal, and Franklin refrigeration motors, including GE models 2131 and 2132, and Dayton 241Y12.

Key Specifications

• Horsepower: 1/10 hp
• RPM: 1550
• Voltage: 115/230 Volts, 60 Hz
• Amperage: 4.5/2.2 Amps
• Enclosure: Open ventilation, self-cooled
• Frame / Diameter: 4.4" Diameter
• Shaft Dimensions: 3/8" diameter x 3 1/8" length (includes 3/8" to 1/2" shaft bushing)
• Rotation: Counterclockwise Shaft End (CCWSE)
• Bearings: Sleeve bearings

Product Features & Fitment

This motor features a mechanically reversible design and can be operated on 50 Hz for air-over applications. It includes an adapter bushing to convert the shaft diameter from 3/8" to 1/2". Mounting options include weld nuts on a 3.5" bolt center for stud mounting and extended hubs with rubber rings for base mounting. The motor is UL recognized and CSA certified, ensuring compliance with industry safety standards.

Cross Reference

• 2131, 2132. Dayton 241Y12

Warranty

1 Year Manufacturer Warranty
