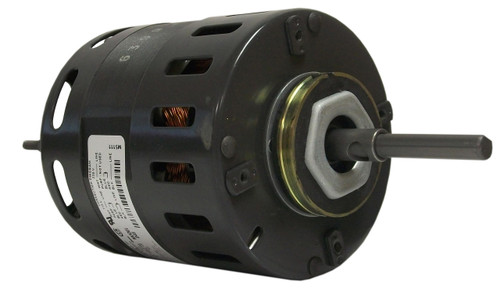

Fasco D485 Motor | 1/20 hp 1550 RPM CCW 4.4" Diameter 115/208-230 Volts
The Fasco D485 is a shaded pole refrigeration fan motor designed for reliable operation in HVAC and refrigeration applications. It serves as a direct replacement for various G.E., Emerson, Universal, and Franklin refrigeration motors, including GE models 2331 and 2332.
Key Specifications
- Horsepower: 1/20 hp
- RPM: 1550
- Voltage: 115/230 Volts, 60 Hz
- Amperage: 2.2/1.1 Amps
- Frame / Diameter: 4.4" Diameter
- Shaft Dimensions: 3/8" diameter x 3 1/8" length (includes 3/8" to 1/2" shaft bushing)
- Rotation: Counterclockwise Shaft End (CCWSE)
- Bearings: Sleeve bearings
- Enclosure: Open ventilation, self-cooled
Product Features & Fitment
This motor features a mechanically reversible design and is suitable for air-over applications, including operation at 50 Hz. It includes a 3/8" to 1/2" shaft adapter bushing for versatile shaft compatibility. Mounting options include weld nuts on a 3.5" bolt center for stud mounting, as well as extended hubs with rubber rings for base mounting. The motor is UL recognized and CSA certified, ensuring compliance with industry standards.
Cross Reference
- 2331, 2332
Warranty
1 Year Manufacturer Warranty
