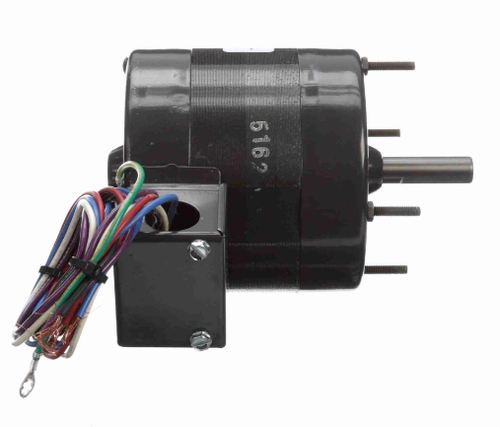

Fasco D115 Motor | 1/12 hp 1550 RPM CCW 4.4" Diameter 115/230 Volts (ILG)
Fasco D115 Motor | 1/12 hp 1550 RPM CCW 4.4" Diameter 115/230 Volts (ILG)
Fasco D115 Motor | 1/12 hp 1550 RPM CCW 4.4" Diameter 115/230 Volts (ILG)
Fasco D115 Motor | 1/12 hp 1550 RPM CCW 4.4" Diameter 115/230 Volts (ILG)
Fasco D115 Motor | 1/12 hp 1550 RPM CCW 4.4" Diameter 115/230 Volts (ILG)
Fasco D115 Motor | 1/12 hp 1550 RPM CCW 4.4" Diameter 115/230 Volts (ILG)

Fasco Motors

Fasco D115 Motor | 1/12 hp 1550 RPM CCW 4.4" Diameter 115/230 Volts (ILG)

(No reviews) Write a Review
$402.39
$382.26
SKU D115
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNT & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 115/230V
Horsepower 1/12 HP
RPM 1550
Hertz 60 Hz
Amperage 2.5/1.3 Amps
Bearings Sleeve Bearings
Mounting Stud
Cross Reference , ILG, 78-27-721T, 7108-223 7108-6500* (*115 VOLT ONLY -3/4" LONGER 'A' DIM & HAS CONDUIT BOX -CHECK FIT -NEED KIT 221 & KIT 200 TO MOUNT IN BASE -USE EITHER 30-492 BASE OR 30-517 BASE)
Adding to cart… The item has been added
Description
  • 1/12 hp 1550 RPM, 2.5/1.3 amps, 115/230 Volts 60hz.
  • Shaft: 1/2" x 2" Rotation = CCWSE
  • Stud Mount - Bolt Circle - 3.89"
  • Motor Length Less Shaft = 4 1/8"
  • Sleeve bearings
  • Conduit Box
  • 1 Year Manufacture Warranty

Suggested replacement reference for: ILG 78-27-721T, Fasco 7108-2237. Dayton 48GN53

Specifications
Voltage 115/230V
Horsepower 1/12 HP
RPM 1550
Hertz 60 Hz
Amperage 2.5/1.3 Amps
Bearings Sleeve Bearings
Mounting Stud
Cross References

, ILG, 78-27-721T, 7108-223 7108-6500* (*115 VOLT ONLY -3/4" LONGER 'A' DIM & HAS CONDUIT BOX -CHECK FIT -NEED KIT 221 & KIT 200 TO MOUNT IN BASE -USE EITHER 30-492 BASE OR 30-517 BASE)

!
