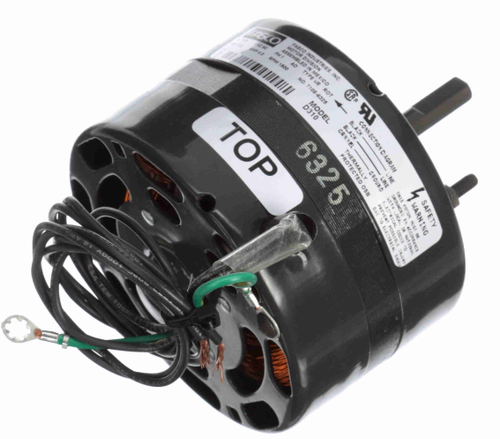

Fasco D310 Motor | 1/12 hp 1500 RPM CW 4.4" Diameter 115 Volts (Leslie Locke)

Fasco D310 Motor | 1/12 hp 1500 RPM CW 4.4" Diameter 115 Volts (Leslie Locke)

The Fasco D310 is a compact electric motor designed for attic exhaust and attic fan applications. It serves as a direct replacement for Leslie Locke ventilators, specifically matching original part #7108-5056 and Dayton 241X55.

Key Specifications

• Horsepower: 1/12 hp
• RPM: 1500
• Voltage: 115 Volts
• Amperage: 4 Amps
• Frame / Diameter: 4.4" Diameter
• Shaft Dimensions: 3/8" diameter x 2" length
• Rotation: Clockwise (CWSE)
• Bearings: Sleeve Bearings

Product Features & Fitment

This motor can be mounted using either a belly band or stud mount, with a bolt circle diameter of 3.89". The motor length excluding the shaft measures 2 3/4", making it suitable for compact installations. It is engineered for reliable performance in ventilation systems requiring clockwise shaft rotation.

Warranty

1 Year Manufacturer Warranty
