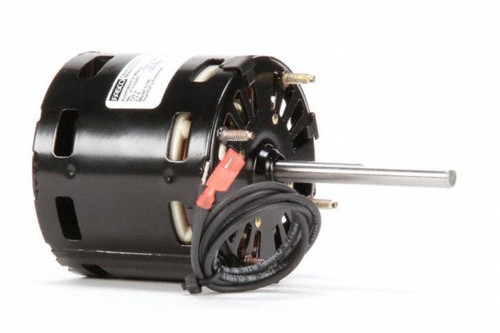

The Fasco D109 is a compact shaded pole motor designed for HVAC and industrial applications requiring reliable air movement. It serves as a direct replacement for motors with similar specifications, providing consistent clockwise rotation and efficient performance.

Key Specifications

• Horsepower: 1/15 hp
• RPM: 1600
• Voltage: 115 Volts
• Amperage: 2.1 Amps
• Enclosure: Open Ventilation, Air Over
• Frame / Diameter: 3.3" Diameter
• Shaft Dimensions: 5/16" diameter x 3" length
• Rotation: Clockwise (CW)
• Bearings: Sleeve Bearings

Product Features & Fitment

This motor features four mounting studs with a bolt circle diameter of 2.85" for secure installation. The motor length excluding the shaft measures 3", making it suitable for compact spaces. Its shaded pole design ensures quiet operation, while the open ventilation and air over configuration support effective cooling during use.

Warranty

1 Year Manufacturer Warranty
