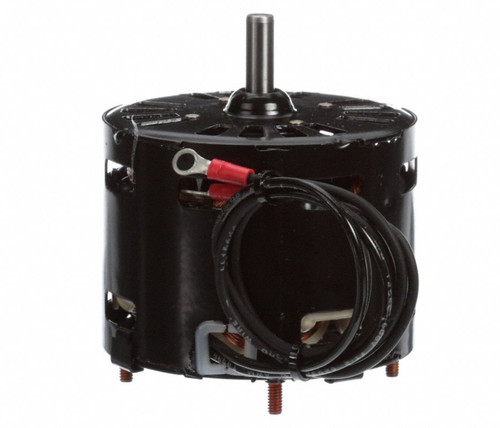

Fasco D107 Motor | 1/160 hp 600 RPM CCW 3.3" Diameter 208-240 Volts

Fasco D107 Motor | 1/160 hp 600 RPM CCW 3.3" Diameter 208-240 Volts

The Fasco D107 is a compact shaded pole motor designed for HVAC and industrial applications requiring reliable, low-speed operation. It serves as a direct replacement for models such as Dayton 38N526 and 7173-0291, delivering consistent performance in air-moving equipment.

Key Specifications

• Horsepower: 1/160 hp
• RPM: 600
• Voltage: 208-240 Volts, 60 Hz
• Amperage: 0.5 amps
• Enclosure: Open Ventilation, Air Over
• Frame / Diameter: 3.3" Diameter
• Shaft Dimensions: 5/16" diameter x 1" length
• Rotation: Counterclockwise Shaft End (CCWSE)
• Bearings: Sleeve Bearings

Product Features & Fitment

This motor features four mounting studs located on the opposite end of the shaft with a bolt circle diameter of 2.85". The motor length, excluding the shaft, measures 2 5/8", making it suitable for compact installations. Its open ventilation design requires airflow over the motor for proper cooling during operation.

Warranty

1 Year Manufacturer Warranty
