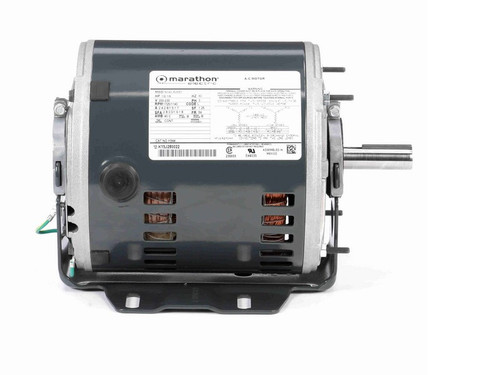

K544 Marathon 1/2 -1/6 hp 3 phase 1800/1200 RPM 56 Frame 200-230V ODP Resilient Mount Marathon Motor

K544 Marathon 1/2 - 1/6 hp 3 Phase 1800/1200 RPM 56 Frame 200-230V ODP Resilient Mount Marathon Motor

This Marathon general-purpose motor is designed for a variety of industrial and HVAC applications requiring a reliable 3-phase electric motor. It features a two-speed operation and is suitable for replacing motors with similar specifications.

Key Specifications

• Horsepower: 1/2 - 1/6 hp
• RPM: 1800 / 1200
• Voltage: 200-230V, 60 Hz
• Amperage: 2.4-2.8 / 1.5-1.7 A
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 56 Frame
• Shaft Dimensions: Keyed shaft, 5/8" diameter x 1 7/8" length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor includes a resilient base mount for vibration reduction and easy installation. It is equipped with Class B insulation and a service factor of 1.25 but does not include overload protection. Wiring diagrams are provided on the motor nameplate for straightforward electrical connections.

Warranty

1 Year Manufacturer Warranty
