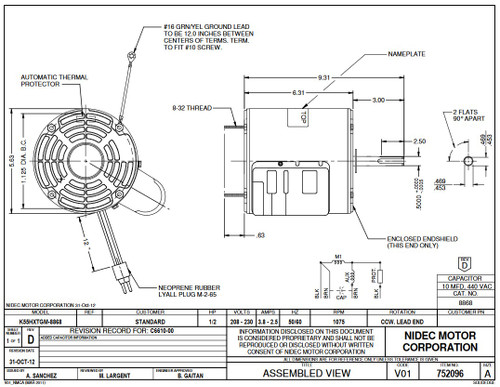

8868 Nidec | 1/2 hp 1075 RPM 1-Speed 208-230V; 5.6" Condenser Motor
8868 Nidec | 1/2 hp 1075 RPM 1-Speed 208-230V; 5.6" Condenser Motor
8868 Nidec | 1/2 hp 1075 RPM 1-Speed 208-230V; 5.6" Condenser Motor
8868 Nidec | 1/2 hp 1075 RPM 1-Speed 208-230V; 5.6" Condenser Motor

Nidec

8868 Nidec | 1/2 hp 1075 RPM 1-Speed 208-230V; 5.6" Condenser Motor

(No reviews) Write a Review
$335.80
$299.35
SKU 8868
Availability Subject to availability
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 208/230V
Horsepower 1/2 HP
RPM 1075
Hertz 50/60 Hz
Type Permanent Split Capacitor
Amperage 3.8/2.5 Amps
Bearings Ball Bearings
Speeds 1-Speed
Insulation Class Class B
Rotation Reversible
Mounting Stud
Duty Continuous Duty
Adding to cart… The item has been added
Description
  • 1/2 hp 1075 RPM 3.8/2.5 amps 1-Speed 208-230V 50/60hz.
  • Shaft 1/2" x 3"
  • Rotation: Reversible
  • 5.6" Diameter
  • Motor case length 6.3"
  • Ball bearings
  • Stud Mount
  • 50/60 Hz
  • 10MFD 370V Capacitor REQUIRED (Our Part #10DV)
  • 1 Year mfg warranty

Permanent Split Capacitor Motor. Automatic Overload Protection. Continuous Duty; Totally-Enclosed Enclosure; Class B Insulation; 40C Ambient Temperature; Conduit box, K055TGM8868011B

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 208/230V
Horsepower 1/2 HP
RPM 1075
Hertz 50/60 Hz
Type Permanent Split Capacitor
Amperage 3.8/2.5 Amps
Bearings Ball Bearings
Speeds 1-Speed
Insulation Class Class B
Rotation Reversible
Mounting Stud
Duty Continuous Duty
!
