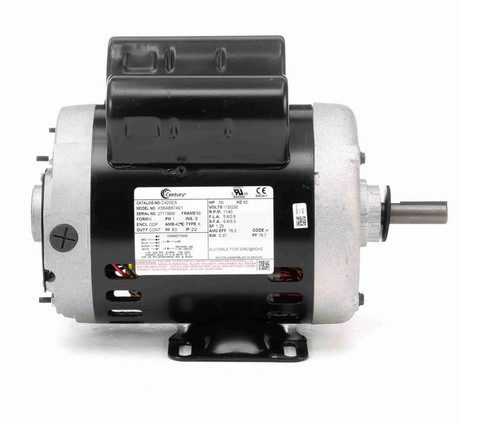

C420ES Century 1/2 hp 1200 RPM 1-Phase 56 Frame ODP (rigid base) 115/230V Century Motor # C420ES

C420ES Century 1/2 hp 1200 RPM 1-Phase 56 Frame ODP (Rigid Base) 115/230V Motor

This Century C420ES motor is a general-purpose, single-phase replacement motor designed for applications requiring a 1/2 horsepower, 1200 RPM output. It features a rigid base mount and is suitable for use in equipment without special requirements.

Key Specifications

• Horsepower: 1/2 hp
• RPM: 1200
• Voltage: 115/230 V
• Amperage: 5.6/2.8 A
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 56 frame
• Shaft Dimensions: Keyed shaft, 5/8" diameter x 1 7/8" length
• Rotation: Reversible
• Bearings: Ball bearings

Product Features & Fitment

This motor includes a capacitor start/run design and operates at 60 Hz. It mounts on a rigid base and features a keyed shaft for secure coupling. The wiring diagram is conveniently located on the motor nameplate to assist with installation. The motor is equipped with Class B insulation and does not include overload protection.

Warranty

1 Year Manufacturer Warranty
