D12CP3PH Nidec | 1/2 hp 1200 RPM 56H Frame 115/230V Open Drip Nidec Electric Motor
D12CP3PH Nidec | 1/2 hp 1200 RPM 56H Frame 115/230V Open Drip Nidec Electric Motor
D12CP3PH Nidec | 1/2 hp 1200 RPM 56H Frame 115/230V Open Drip Nidec Electric Motor
D12CP3PH Nidec | 1/2 hp 1200 RPM 56H Frame 115/230V Open Drip Nidec Electric Motor

Nidec

D12CP3PH Nidec | 1/2 hp 1200 RPM 56H Frame 115/230V Open Drip Nidec Electric Motor

(No reviews) Write a Review
$676.20
$604.21
SKU D12CP3PH
UPC 6.63E+11
Availability Subject to availability
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 115/230V
Horsepower 1/2 HP
RPM 1200
Phase Single Phase
Frame 56H
Enclosure ODP
Hertz 60 Hz
Amperage 4.8/2.4 Amps
Bearings Ball Bearings
Service Factor 1.25
Insulation Class Class B
Mounting Rigid Base
Duty Continuous Duty
Adding to cart… The item has been added
Description
  • 1/2 hp 1200 RPM, 4.8/2.4 amps 115/230 Volts 60hz. Single Phase Motor
  • NEMA 56H Frame Keyed Shaft 5/8" Diameter x 1 7/8"
  • ODP; Service Factor: 1.25, Overload protection = None
  • Reversible, Rigid Base Mount, Ball Bearings, Class B Insulation
  • 1 Year Manufacture Warranty

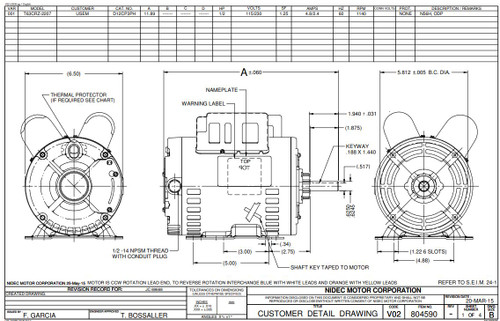

General purpose motor can be used for many applications requiring a single phase electric motor. Continuous Duty.  Wiring diagram on motor name plate. ODP = Open Drip Proof

T063CRZ2207012B
Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 115/230V
Horsepower 1/2 HP
RPM 1200
Phase Single Phase
Frame 56H
Enclosure ODP
Hertz 60 Hz
Amperage 4.8/2.4 Amps
Bearings Ball Bearings
Service Factor 1.25
Insulation Class Class B
Mounting Rigid Base
Duty Continuous Duty
!
