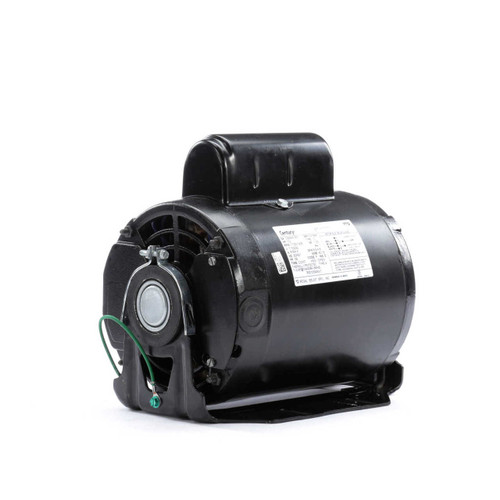

RS1054AV1 Century 1/2 hp 1725 RPM 56 Frame 115/230V 50/60 hz Belt Drive Cap Start Blower Motor Century # RS1054AV1

RS1054AV1 Century 1/2 hp 1725 RPM 56 Frame 115/230V 50/60 Hz Belt Drive Cap Start Blower Motor

This Century RS1054AV1 blower motor is a reliable 1/2 horsepower, capacitor start motor designed for belt drive applications. It serves as a direct replacement for Century # RS1054AV1 and Dayton 48Z158, suitable for HVAC and industrial blower systems requiring reversible rotation and continuous duty operation.

Key Specifications

• Horsepower: 1/2 hp
• RPM: 1725
• Voltage: 115/230 V
• Amperage: 8.8/4.4 A
• Enclosure: Open Drip Proof
• Frame / Diameter: 56 Frame
• Shaft Dimensions: 5/8" diameter x 1 7/8" length, 3.5" shaft height
• Rotation: Reversible
• Bearings: Sleeve Bearings

Product Features & Fitment

The motor features a resilient cradle base for stable mounting and quick connect terminals for easy wiring. It includes automatic overload protection and a service factor of 1.25, ensuring durability under continuous duty conditions. The design allows for straightforward rotation changes and is built with Class B insulation for enhanced thermal protection.

Warranty

1 Year Manufacturer Warranty
