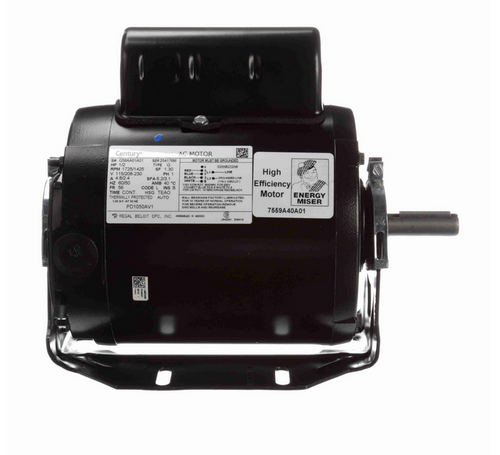

PD1050AV1 Century 1/2 hp 1800 RPM 56 Frame (Resilient Base) 115V/208-230 TEAO Poultry Duty Motor # PD1050AV1

PD1050AV1 Century 1/2 hp 1800 RPM 56 Frame (Resilient Base) 115V/208-230 TEAO Poultry Duty Motor

The PD1050AV1 is a 1/2 horsepower, 1800 RPM motor designed for demanding environments such as poultry houses and barns. This belt drive motor replaces standard units with its robust construction and totally enclosed air-over (TEAO) design, ensuring reliable operation in dirty and harsh conditions.

Key Specifications

• Horsepower: 1/2 hp
• RPM: 1800
• Voltage: 115/208-230 V, 60 Hz
• Amperage: 4.8/2.4 A
• Enclosure: Totally-Enclosed Air-Over (TEAO)
• Frame / Diameter: NEMA 56 frame
• Shaft Dimensions: Keyed shaft, 5/8" diameter x 1 7/8" length
• Rotation: Reversible
• Bearings: Ball bearings

Product Features & Fitment

This motor features a resilient base for stable mounting and is equipped with a keyed shaft for secure belt attachment. It includes an induction run and capacitor start design with automatic overload protection. The motor’s Class B insulation and ball bearings enhance durability and performance in tough, dusty environments.

Warranty

1 Year Manufacturer Warranty
