sale
Century Electric Motor

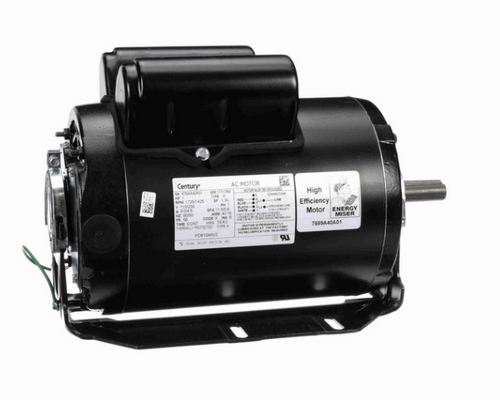

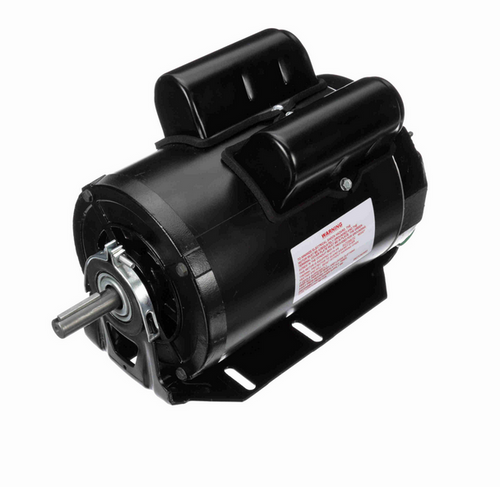

PD6104AV2 Marathon 1 hp 1800 RPM 56 Frame (Resilient Base) 115V/230 TEAO Century Poultry Duty Motor
(No reviews)
Write a Review
Write a Review
Century Electric Motor
PD6104AV2 Marathon 1 hp 1800 RPM 56 Frame (Resilient Base) 115V/230 TEAO Century Poultry Duty Motor
$586.62
$497.15
SKU
PD6104AV2
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage
115V
Horsepower
1 HP
RPM
1800
Frame
56
Enclosure
TEAO
Hertz
60 Hz
Amperage
9.0/4.5 Amps
Bearings
Ball Bearings
Service Factor
1.3
Insulation Class
Class B
PD6104AV2 Marathon 1 hp 1800 RPM 56 Frame (Resilient Base) 115V/230 TEAO Century Poultry Duty Motor
This Marathon 1 hp motor is designed for belt drive applications in harsh environments such as poultry houses and barns. It replaces standard motors requiring a durable, totally enclosed air-over (TEAO) design for extended reliability in dirty conditions.
Key Specifications
- Horsepower: 1 hp
- RPM: 1800
- Voltage: 115/230 V
- Amperage: 9.0/4.5 A
- Enclosure: Totally-Enclosed Air-Over (TEAO)
- Frame / Diameter: NEMA 56 frame
- Shaft Dimensions: Keyed shaft, 5/8" diameter x 1 7/8" length
- Rotation: Reversible
- Bearings: Ball bearings
Product Features & Fitment
This motor features a resilient base for stable mounting and is equipped with capacitor start/run for efficient operation. It includes an automatic overload protection system and Class B insulation for enhanced durability. The motor’s design supports reversible rotation and is suitable for installation in environments exposed to dust and debris.
Warranty
1 Year Manufacturer Warranty
1 Year Manufacturer Warranty
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM |
| Voltage | 115V |
| Horsepower | 1 HP |
| RPM | 1800 |
| Frame | 56 |
| Enclosure | TEAO |
| Hertz | 60 Hz |
| Amperage | 9.0/4.5 Amps |
| Bearings | Ball Bearings |
| Service Factor | 1.3 |
| Insulation Class | Class B |
