116463.00 Leeson | 1/2 hp 1800 RPM 56C TENV Washdown Duty Brake Motor no Base 208-230/460V

116463.00 Leeson 1/2 hp 1800 RPM 56C TENV Washdown Duty Brake Motor (No Base) 208-230/460V

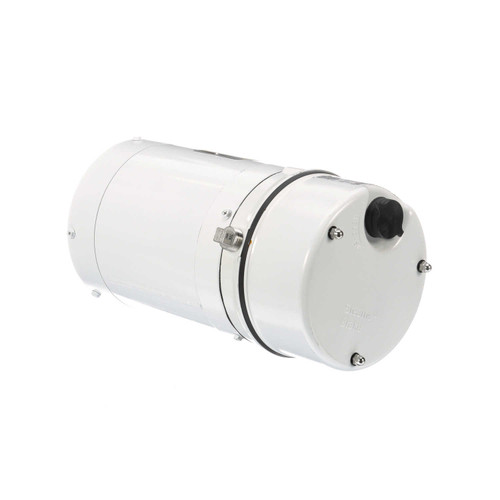

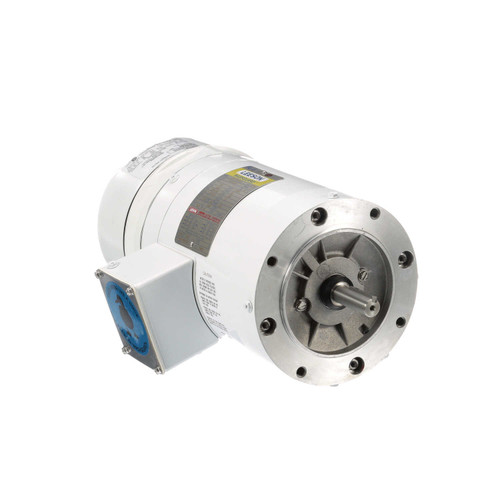

This Leeson brake motor is a 1/2 horsepower, 1800 RPM, three-phase motor designed for washdown duty applications. It replaces Marathon model N373,056T17V99004 and features a fail-safe, spring-set brake for reliable stopping and holding of loads.

Key Specifications

• Horsepower: 1/2 hp
• RPM: 1800
• Voltage: 208-230/460V, 60 Hz
• Amperage: 1.8 / 0.90 amps
• Enclosure: Totally Enclosed Non-Vented (TENV)

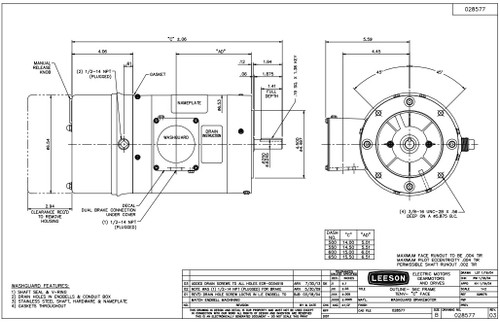

• Frame / Diameter: NEMA 56C Frame
• Shaft Dimensions: Keyed shaft, 5/8" diameter x 1 7/8" length

Product Features & Fitment

This motor features a round body design without a base, suitable for flexible mounting configurations. The brake is spring-set for fail-safe operation, automatically stopping the load when power is removed. It includes a power-off manual release that resets automatically, allowing manual brake release during power outages. The brake coil leads are routed into the motor’s conduit box for easy wiring and can be configured to actuate either when motor power is off or independently. The brake coil operates at 230/460VAC, 60 Hz.

Cross Reference

• Marathon N373,056T17V99004

Warranty

1 Year Manufacturer Warranty
