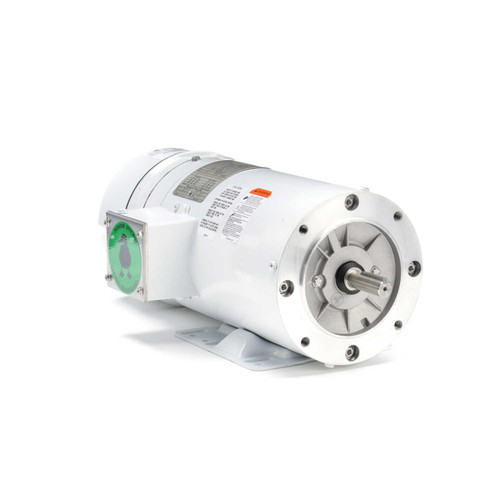

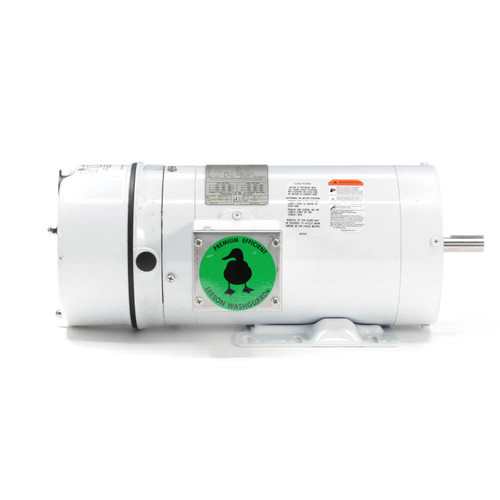

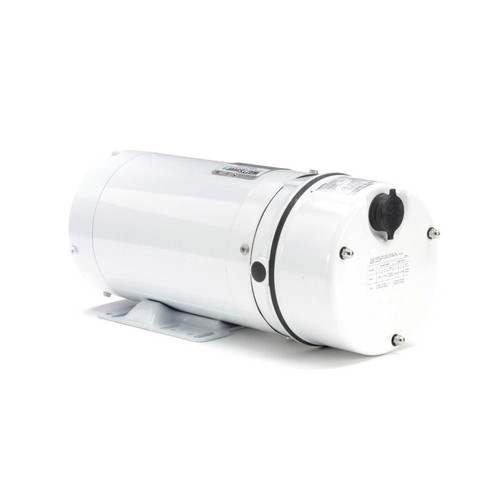

119486.00 Leeson | 1 hp 1800 RPM 56HC TENV Washdown Duty Brake Motor w/Base 230/460V

• 1 hp 1800 RPM, 2.8/1.4 amps, 208-230/460V 60hz. Three Phase Motor
• NEMA 56HC Frame Keyed Shaft 5/8" Diameter x 1 7/8"
• Brake Rating Ft. Lbs. = 6
• Rigid Base/C-Face Mount
• TENV-Totally Enclosed Non Vented
• Service Factor 1.15; Class F Insulation
• 1 Year Manufacture Warranty

Fail-safe positive, stop and hold brake motors. Brakes are spring set. Load is stopped automatically when power is turned off. Leeson brake motors feature a power off manual release for convenience, and for use in case of power failure. The manual resets automatically. Brake is manufactured by Sterns. The brake coil leads are brought into the conduit box of the motor for easy connection and may be connected to operate when power to the motor is shut off or to be actuated independent of power to the motor. Brake coil is 230/460VAC, 60hz.

C6T17WK47, 119486.00, 116469.00
Replaces Marathon N363, 056T17W99047
