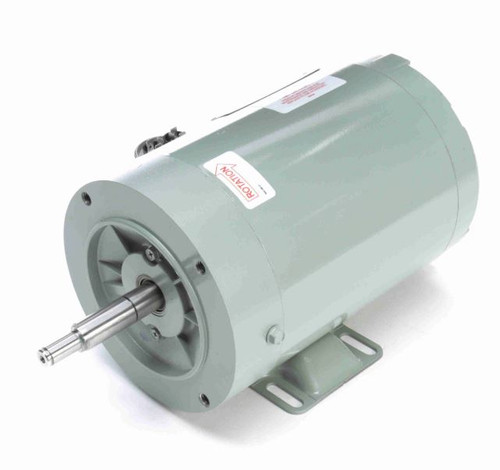

113939.00 Leeson | 1/2 hp 3450 RPM 56CZ Frame 230V Milk Transfer (Babson 27732) Pump Motor
113939.00 Leeson | 1/2 hp 3450 RPM 56CZ Frame 230V Milk Transfer (Babson 27732) Pump Motor
113939.00 Leeson | 1/2 hp 3450 RPM 56CZ Frame 230V Milk Transfer (Babson 27732) Pump Motor
113939.00 Leeson | 1/2 hp 3450 RPM 56CZ Frame 230V Milk Transfer (Babson 27732) Pump Motor
113939.00 Leeson | 1/2 hp 3450 RPM 56CZ Frame 230V Milk Transfer (Babson 27732) Pump Motor
113939.00 Leeson | 1/2 hp 3450 RPM 56CZ Frame 230V Milk Transfer (Babson 27732) Pump Motor
113939.00 Leeson | 1/2 hp 3450 RPM 56CZ Frame 230V Milk Transfer (Babson 27732) Pump Motor
113939.00 Leeson | 1/2 hp 3450 RPM 56CZ Frame 230V Milk Transfer (Babson 27732) Pump Motor

Leeson

113939.00 Leeson | 1/2 hp 3450 RPM 56CZ Frame 230V Milk Transfer (Babson 27732) Pump Motor

(No reviews) Write a Review
$631.35
$534.64
SKU 113939.00
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 230V
Horsepower 1/2 HP
RPM 3450
Phase Single Phase
Frame 56CZ
Enclosure TENV
Hertz 60 Hz
Type Permanent Split Capacitor
Amperage 4.5 Amps
Bearings Ball Bearings
Service Factor 1.0
Insulation Class Class F
Rotation Reversible
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 1/2 hp 3450 RPM, 4.5 amps, 230 Volts 60hz.
  • 56CZ Frame; Shaft 1/2" x 3.11"
  • Permanent Split Capacitor, Single Phase
  • Class F Insulation; Service Factor 1.0
  • 60 Minute Duty
  • Rigid Base
  • TENV - Totally Enclosed Non Ventilated
  • Weather Proof Features for Washdown
  • Rotation=Reversible
  • One Year Manufacture Warranty

Totally enclosed non-ventilated motor. Direct replacement for Surge milk pumps, Babson motor #27732.Special moisture resistant design with double sealed ball bearings. Bearings and bearing cavities packed with high temperature moisture resistant lubricant. Drain holes to expel moisture and water, Epoxy paint.Permanent split capacitor design for reliability and improved efficiency. High temperature insulation. Requires 30 MFD, 370VAC Capacitor, separately mounted-included. Dayton 36X979; Model C6P34NK5F; 113939.00

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 230V
Horsepower 1/2 HP
RPM 3450
Phase Single Phase
Frame 56CZ
Enclosure TENV
Hertz 60 Hz
Type Permanent Split Capacitor
Amperage 4.5 Amps
Bearings Ball Bearings
Service Factor 1.0
Insulation Class Class F
Rotation Reversible
Mounting Rigid Base
!
