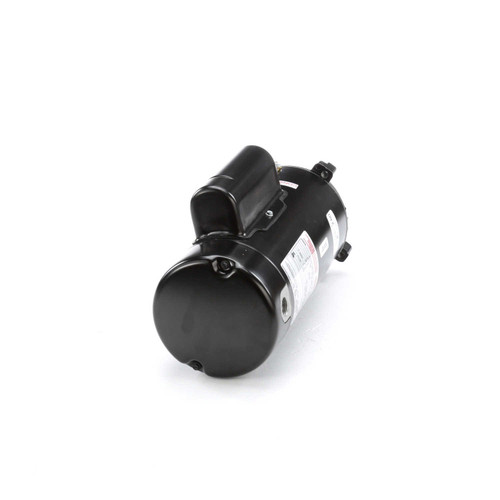

SK1202 Century 2 hp 3450 RPM 56C Frame 230V Swimming Pool - Jet Pump Motor
This single-speed motor is designed to replace jet pump and pool pump motors, providing reliable performance for swimming pool applications. It features a 2 horsepower motor with a 3450 RPM speed, suitable for 208-230V power supply.
Key Specifications
- Horsepower: 2 HP
- RPM: 3450
- Voltage: 208-230V, 60 Hz
- Amperage: 11.4 amps
- Frame / Diameter: 56C Frame
- Shaft Dimensions: 5/8" diameter keyed shaft
- Rotation: Counterclockwise (CCW) facing the shaft
- Bearings: Sealed ball bearings
Product Features & Fitment
This motor features a C-face mount with a round body and no base, designed for direct pump mounting using four threaded bolt holes spaced 5 7/8" on center across the shaft. It includes automatic overload protection and a 1.3 service factor for energy-efficient operation. The wiring diagram is located on the motor nameplate for easy installation. Please verify local and state regulations regarding pump motor replacements, as this motor does not comply with California Title 20 or New York NYSERDA efficiency standards and may be restricted in those regions.
