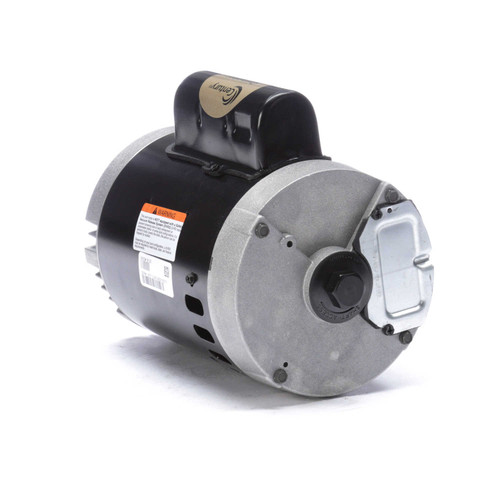

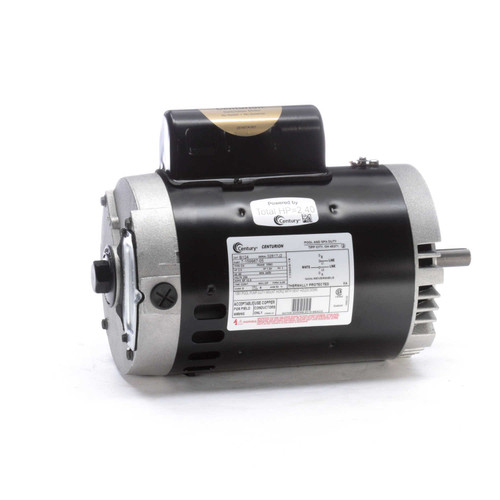

B124 Century 2 hp 3450 RPM 56C Frame 230V Swimming Pool - Jet Pump Motor Century # B124

B124 Century 2 hp 3450 RPM 56C Frame 230V Swimming Pool - Jet Pump Motor Century # B124

This Century B124 motor is a 2 HP, 3450 RPM, 230V single-speed motor designed primarily for swimming pool jet pump applications. It serves as a direct replacement for US Electric model EB124 and is suitable for jet and pool pump use.

Key Specifications

• Horsepower: 2 HP
• RPM: 3450
• Voltage: 230V
• Amperage: 10.5 amps
• Frame / Diameter: 56C Frame
• Shaft Dimensions: 5/8" diameter with keyway
• Rotation: Counterclockwise (CCW) facing the shaft, non-reversible
• Bearings: Sealed ball bearings

Product Features & Fitment

This motor features a C-face mount with a round body and no base, designed for direct pump mounting. It includes four threaded bolt holes spaced 5 7/8" on center across the shaft for secure attachment. The motor is equipped with automatic overload protection and a 1.2 service factor. A wiring diagram is provided on the motor nameplate to assist with installation.

Please verify local and state regulations regarding pump motor replacements, as this motor does not comply with California Title 20 or New York NYSERDA efficiency standards. Shipping restrictions apply for these states due to regulatory compliance requirements.
