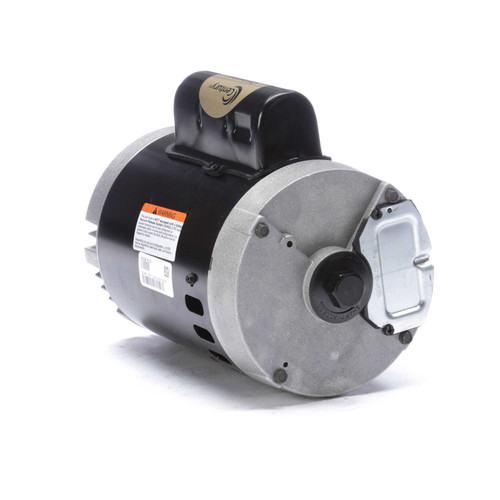

B120 Century | 1/2 hp 3450 RPM 56C Frame 115/230V Swimming Pool - Jet Pump Motor

B120 Century | 1/2 hp 3450 RPM 56C Frame 115/230V Swimming Pool - Jet Pump Motor

The B120 Century motor is a 1/2 HP, 3450 RPM pump motor designed for swimming pool and jet pump applications. It serves as a reliable replacement motor compatible with standard 1081 pump duty motors, commonly found on most swimming pool pumps.

Key Specifications

• Horsepower: 1/2 HP
• RPM: 3450
• Voltage: 115/230V, 60 Hz
• Amperage: 8.8/4.4 Amps
• Frame / Diameter: 56C Frame
• Shaft Dimensions: 5/8" diameter with keyway
• Rotation: Counterclockwise (CCW) facing the shaft, non-reversible
• Bearings: Sealed ball bearings

Product Features & Fitment

This motor features a C-face mount with a round body and no base, equipped with four threaded bolt holes on the face for pump mounting. The bolt holes are spaced 5 7/8" on center across the shaft. It includes automatic overload protection and a stainless steel shaft for durability. Wiring diagrams are provided on the motor nameplate for ease of installation. Please verify local and state codes to ensure compliance with current energy regulations, as this motor does not meet California or New York variable speed requirements.

Warranty
