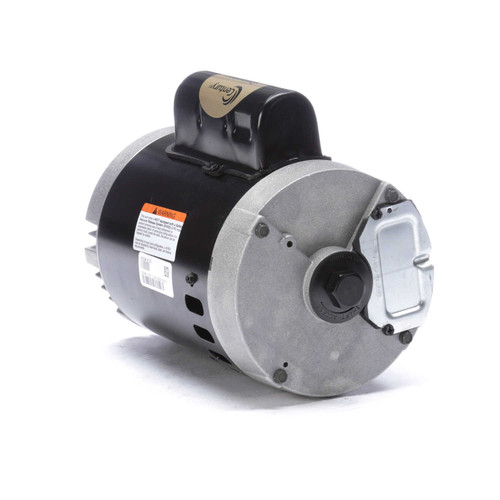

B123 Century 1.5 hp 3450 RPM 56C Frame 115/230V Swimming Pool - Jet Pump Motor Century # B123

B123 Century 1.5 hp 3450 RPM 56C Frame 115/230V Swimming Pool - Jet Pump Motor

This Century B123 motor is a 1.5 horsepower, single-speed jet pump motor designed for swimming pool and pool pump applications. It serves as a direct replacement for US Electric model EB123 and is suitable for 115/230V power supplies.

Key Specifications

• Horsepower: 1.5 hp
• RPM: 3450
• Voltage: 115/230V, 60 Hz
• Amperage: 18.4/9.2 A
• Frame / Diameter: 56C Frame
• Shaft Dimensions: 5/8" diameter with keyway
• Rotation: Counterclockwise (CCW) facing the shaft, non-reversible
• Bearings: Sealed ball bearings
• Enclosure: C-Face mount, round body with no base

Product Features & Fitment

The motor features automatic overload protection and a 1.3 service factor for reliable operation. It includes four threaded bolt holes on the face for pump mounting, spaced 5 7/8" on center across the shaft. A wiring diagram is provided on the motor nameplate to assist with installation.

Please verify local and state regulations before installation, as this motor does not comply with California Title 20 or New York NYSERDA efficiency standards and cannot be shipped to those states due to legal restrictions.
