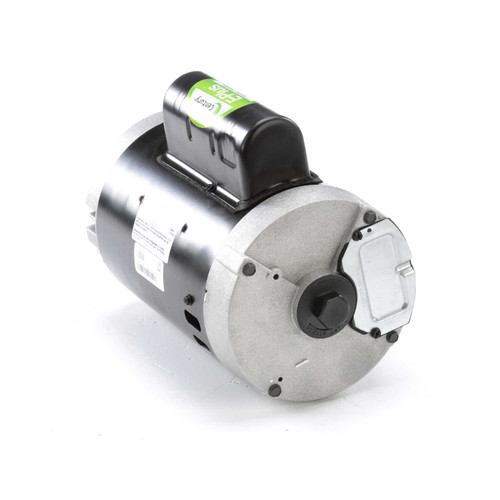

B653 Century 1 hp 3450 RPM 56C Frame 115/230V Swimming Pool - Jet Pump Motor Century # B653

B653 Century 1 HP 3450 RPM 56C Frame Swimming Pool Jet Pump Motor

This Century B653 motor is a high service factor, energy-efficient replacement motor designed for swimming pool jet pumps. It is suitable for direct replacement applications requiring a 1 HP motor with a 56C frame and C-face mount.

Key Specifications

• Horsepower: 1 HP
• RPM: 3450
• Voltage: 115/208-230V, 60 Hz
• Amperage: 11.8/5.9 amps
• Frame / Diameter: 56C Frame
• Shaft Dimensions: 5/8" diameter with keyway, non-treaded
• Rotation: Counterclockwise (CCW) facing the shaft
• Bearings: Sealed ball bearings

Product Features & Fitment

This motor features a round body with a C-face mount and no base, designed for easy installation on compatible jet and pool pumps. It includes four threaded bolt holes spaced 5 7/8" on center across the shaft for secure pump mounting. The motor is equipped with automatic overload protection and a wiring diagram located on the nameplate for straightforward electrical connections.

Please verify local and state regulations before installation, as this motor does not comply with California Title 20 or New York NYSERDA efficiency standards and may be restricted from shipment or use in those states.
