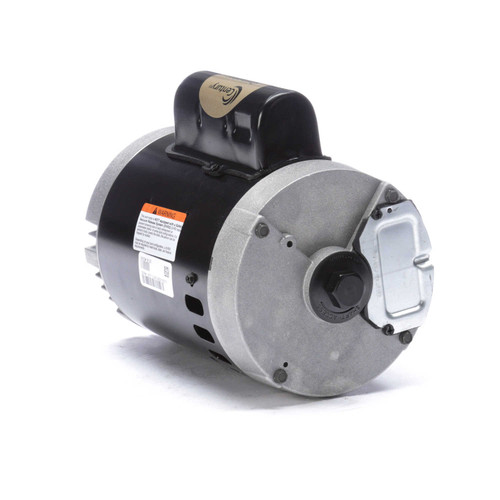

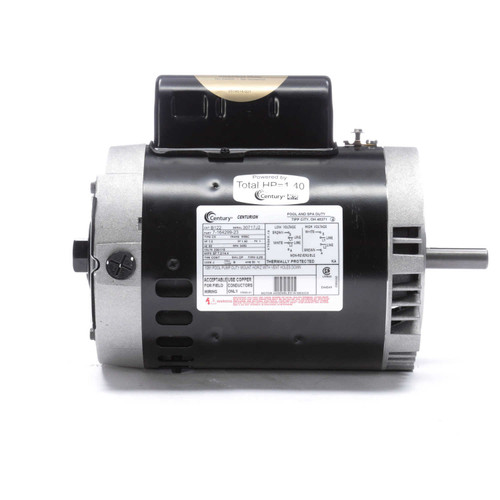

B122 Century 1 hp 3450 RPM 56C Frame 115/230V Swimming Pool - Jet Pump Motor Century # B122

B122 Century 1 hp 3450 RPM 56C Frame 115/230V Swimming Pool - Jet Pump Motor Century # B122

This Century B122 motor is a 1 horsepower, single-speed replacement motor designed for jet pumps and swimming pool applications. It is a direct replacement for US Electric model EB122 and suitable for use in 115/230V, 60Hz systems.

Key Specifications

• Horsepower: 1 HP
• RPM: 3450
• Voltage: 115/230V
• Amperage: 14.4/7.2 amps
• Frame / Diameter: 56C Frame
• Shaft Dimensions: 5/8" diameter with keyway
• Rotation: Counterclockwise (CCW) facing the shaft, non-reversible
• Bearings: Sealed ball bearings

Product Features & Fitment

This motor features a C-face mount with a round body and no base, designed for easy installation on compatible jet and pool pumps. It includes four threaded bolt holes spaced 5 7/8" on center across the shaft for secure pump mounting. The motor is equipped with automatic overload protection and a 1.4 service factor for reliable operation. Wiring diagrams are provided on the motor nameplate for straightforward electrical connections.

Please verify local and state regulations before installation, as this motor does not comply with California Title 20 and New York NYSERDA efficiency standards for single-speed pump motors. Shipping restrictions apply accordingly.
