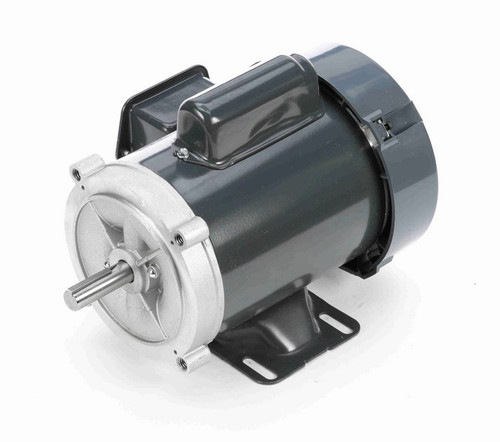

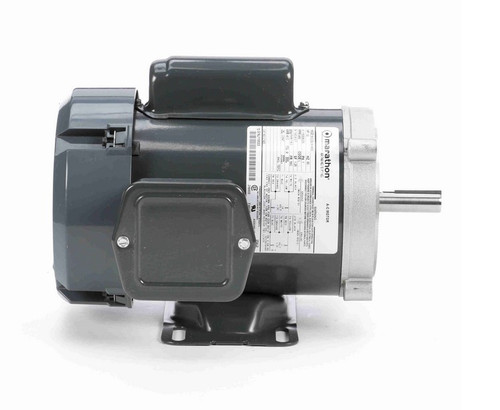

C1420 Marathon 1/2 hp 3600 RPM 56C Frame TEFC 115/208-230V Marathon Electric Motor

SKU:
C1420
Weight:
17.00 LBS
Shipping:
Free Shipping
$200.59
  • 1/2 hp 3600 RPM, 7.4/3.6-3.7 amps 115/208-230 Volts 60hz. Capacitor Start Motor

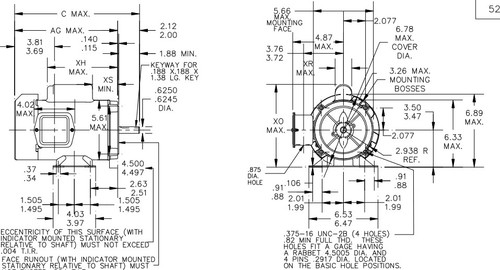

  • NEMA 56C frame, C-face, Keyed Shaft 5/8" Diameter x 1 7/8"
  • Service Factor: 1.25, Overload protection = None
  • Rigid Base, Reversible, Ball Bearings, Class B Insulation
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a single phase electric motor with a C-face mount. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8" on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan Cooled. 5KC36LN144
