Century Electric Motor

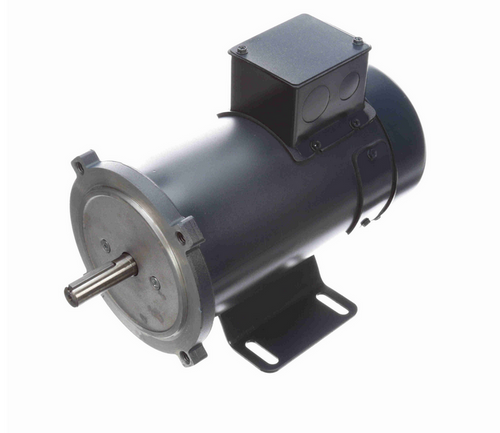

DC130 Century 1/2 hp DC Perm. Magnet 56C Frame C Face TEFC 1750 RPM (rigid base) 180V Marathon Motor # DC130
(No reviews)
Write a Review
Write a Review
Century Electric Motor
DC130 Century 1/2 hp DC Perm. Magnet 56C Frame C Face TEFC 1750 RPM (rigid base) 180V Marathon Motor # DC130
$681.03
$577.19
SKU
DC130
UPC
7.87E+11
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage
180V
Horsepower
1/2 HP
RPM
1750
Frame
56C
Enclosure
TEFC
Amperage
2.5 Amps
Bearings
Ball Bearings
Service Factor
1.0
Insulation Class
Class H
Mounting
C-Face
- 1/2 hp 1750 RPM, 2.5 amps 180 Volts DC current.
- NEMA 56C frame, C-face, Keyed Shaft 5/8" Diameter x 1 7/8"
- Service Factor: 1.0, Overload protection = None
- Rigid Base, Reversible, Ball Bearings, Class H Insulation
- 1 Year Manufacture Warranty
Controller rated DC electric motor with a C-face mount. 20:1 constant torque. Shaft has keyway. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. DC130
