9664 Nidec | 1/20-1/12 hp 1550 RPM 1-Speed 115/230V; 3.3" Blower Motor

9664 Nidec | 1/20-1/12 hp 1550 RPM 1-Speed 115/230V; 3.3" Blower Motor

This Nidec blower motor is designed for refrigeration evaporator applications, providing reliable performance in HVAC systems. It serves as a direct replacement for compatible 1/20 to 1/12 horsepower motors requiring a 1550 RPM, single-speed operation.

Key Specifications

• Horsepower: 1/20-1/12 hp
• RPM: 1550
• Voltage: 115/230V
• Amperage: 1.2-0.95 amps
• Enclosure: Open Air Over

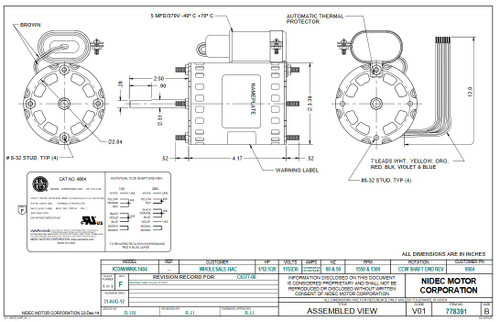

• Frame / Diameter: 3.3" Diameter
• Shaft Dimensions: 5/16" x 2.5"
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a stud mount design for secure installation and includes 12" leads for easy wiring. It is a permanent split capacitor motor with automatic overload protection, suitable for continuous duty in ambient temperatures up to 40°C. The motor case length measures 4.17", and a capacitor is included for immediate use.

Warranty

1 Year Manufacturer Warranty
