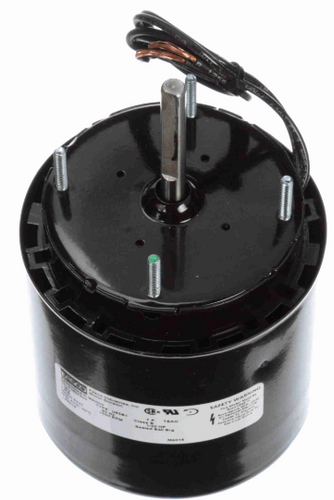

Fasco D227 Motor | 1/20 hp 1500 RPM CCW 3.9" Diameter 115 Volts

Fasco D227 Motor | 1/20 hp 1500 RPM CCW 3.9" Diameter 115 Volts

The Fasco D227 is a compact shaded pole motor designed for reliable performance in HVAC and industrial applications. It serves as a direct replacement motor with a counterclockwise shaft rotation, suitable for various blower and fan assemblies.

Key Specifications

• Horsepower: 1/20 hp
• RPM: 1500
• Voltage: 115 Volts
• Amperage: 1.7 amps
• Enclosure: Totally enclosed, self-cooled, thermally protected
• Frame / Diameter: 3.9" diameter (bolt circle 2.85")
• Shaft Dimensions: 5/16" diameter x 2 1/4" length
• Rotation: Counterclockwise (CCW)
• Bearings: Ball bearings

Product Features & Fitment

This motor features a stud mount with a 2.85" bolt circle for secure installation. The motor length excluding the shaft measures 4 1/4", making it compatible with compact spaces. Its shaded pole design ensures quiet operation and reliable starting torque.

Warranty

1 Year Manufacturer Warranty
