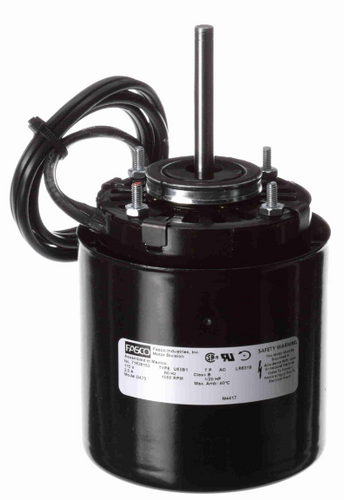

Fasco D473 Motor | 1/20 hp 1550 RPM CCW 3.9" Diameter 115 Volts
Fasco D473 Motor | 1/20 hp 1550 RPM CCW 3.9" Diameter 115 Volts
Fasco D473 Motor | 1/20 hp 1550 RPM CCW 3.9" Diameter 115 Volts
Fasco D473 Motor | 1/20 hp 1550 RPM CCW 3.9" Diameter 115 Volts

Fasco Motors

Fasco D473 Motor | 1/20 hp 1550 RPM CCW 3.9" Diameter 115 Volts

(No reviews) Write a Review
$207.00
$183.94
SKU D473
UPC 6.63E+11
Availability IN STOCK
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNT & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 115V
Horsepower 1/20 HP
RPM 1550
Frame 11
Hertz 60 Hz
Amperage 2.0 Amps
Bearings Sleeve Bearings
Mounting Stud
Cross Reference GE, 1331, 5HSP11FG951AS, U9660, 5KSP11BG1272 5KSP11DG755 5KSP11DG814 5KSP11FG13 5KSP11FG205 5KSP11FG228 5KSP11FG285 5KSP11FG358 5KSP11FG398 5KSP11FG499 5KSP11FG528 5KSP11FG7 5KSP11FG703 5KSP11FG951,  9653, U9653
Adding to cart… The item has been added
Description
  • 1/20 hp 1550 RPM, 2.0 Amps, 115 Volts 60 hz.
  • Shaft: 5/16" x 2 5/8" Rotation = Counter Clockwise SE
  • 4 Stud Mount Shaft end
  • Bolt Circle - 2.85"
  • Sleeve bearings
  • Motor Length Less Shaft = 4 1/4"
  • 1 Year Manufacture Warranty.

Application Information: Condenser Fan, Cooler: Evaporative, Cooler: Walk-In, Display Case: Refrigerated. These motors often replace unit bearing motors whose rotation is described opposite shaft end. This is different from the Fasco standard, which is determined by looking at shaft end. Extended hubs with rubber rings for base mount. GE# 1331. G.E. 11 Frame refrigeration motor. Dayton 32NA59, 7163-8153

Specifications
Voltage 115V
Horsepower 1/20 HP
RPM 1550
Frame 11
Hertz 60 Hz
Amperage 2.0 Amps
Bearings Sleeve Bearings
Mounting Stud
Cross References

GE, 1331, 5HSP11FG951AS, U9660, 5KSP11BG1272 5KSP11DG755 5KSP11DG814 5KSP11FG13 5KSP11FG205 5KSP11FG228 5KSP11FG285 5KSP11FG358 5KSP11FG398 5KSP11FG499 5KSP11FG528 5KSP11FG7 5KSP11FG703 5KSP11FG951,  9653, U9653

!
