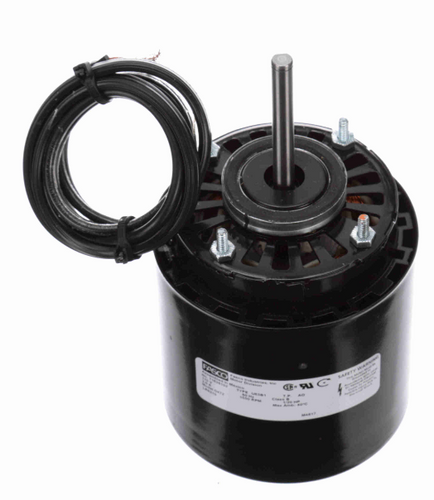

Fasco D472 Motor | 1/20 hp 1550 RPM CW 3.9" Diameter 115 Volts

Fasco D472 Motor | 1/20 hp 1550 RPM CW 3.9" Diameter 115 Volts

The Fasco D472 is a reliable 1/20 HP motor designed for condenser fans, evaporative coolers, walk-in coolers, and refrigerated display cases. It serves as a direct replacement for unit bearing motors with opposite shaft end rotation, adhering to Fasco’s shaft-end rotation standard.

Key Specifications

• Horsepower: 1/20 hp
• RPM: 1550
• Voltage: 115 Volts
• Amperage: 2.0 Amps
• Frame / Diameter: 3.9" Diameter (G.E. 11 Frame)
• Shaft Dimensions: 5/16" diameter x 2 5/8" length
• Rotation: Clockwise (CW)
• Bearings: Sleeve bearings

Product Features & Fitment

This motor features a stud mount with a 2.85" bolt circle and a motor length (excluding shaft) of 4 1/4". It includes extended hubs with rubber rings designed for secure base mounting. The D472 is compatible with GE# 1341 and Dayton 32NA60, 7163-8152 models, making it a versatile choice for refrigeration and cooling applications.

Warranty

1 Year Manufacturer Warranty
