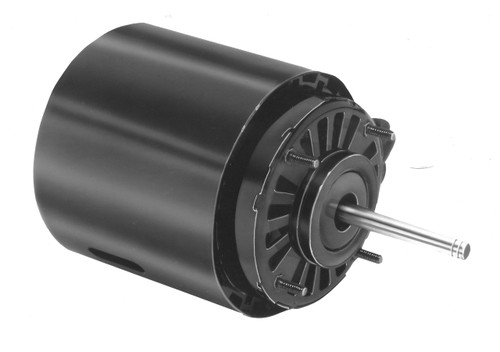

Fasco D417 Motor | 1/20 hp 1550 RPM CCW 3.9" Diameter 208-230V

Fasco D417 Motor | 1/20 hp 1550 RPM CCW 3.9" Diameter 208-230V

The Fasco D417 is a compact motor designed for condenser fans and various cooling applications, including evaporative coolers, walk-in coolers, and refrigerated display cases. It serves as a reliable replacement for unit bearing motors with opposite shaft end rotation, adhering to Fasco’s standard rotation when viewed from the shaft end.

Key Specifications

• Horsepower: 1/20 hp
• RPM: 1550
• Voltage: 208-230V
• Amperage: 1.1 amps
• Frame / Diameter: 3.9"
• Shaft Dimensions: 5/16" diameter x 2-1/2" length
• Rotation: CCWSE (Counterclockwise Shaft End)
• Bearings: Sleeve Bearings

Product Features & Fitment

This motor features a stud mount with a 2.85" bolt circle for secure installation. The motor length excluding the shaft measures 4 1/4". It includes extended hubs with rubber rings designed for base mounting, facilitating easy replacement and stable operation in HVAC and refrigeration equipment.

Warranty

1 Year Manufacturer Warranty
