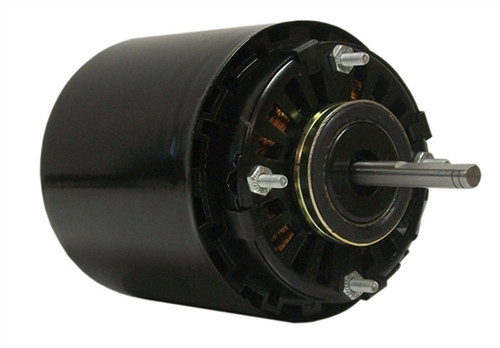

Fasco D469 Motor | 1/12 hp 1550 RPM CCW 3.9" Diameter 208-230 Volts

Fasco D469 Motor | 1/12 hp 1550 RPM CCW 3.9" Diameter 208-230 Volts

The Fasco D469 is a 1/12 horsepower motor designed for condenser fans, evaporative coolers, walk-in coolers, and refrigerated display cases. It serves as a direct replacement for unit bearing motors with opposite shaft end rotation, differing from the Fasco standard which is determined by viewing the shaft end.

Key Specifications

• Horsepower: 1/12 hp
• RPM: 1550
• Voltage: 208-230 Volts
• Amperage: 1.3 amps
• Frame / Diameter: 3.9" diameter (G.E. 11 Frame)
• Shaft Dimensions: 5/16" diameter x 2 1/8" length
• Rotation: Counterclockwise (CCWSE)
• Bearings: Sleeve bearings

Product Features & Fitment

This motor features a stud mount with a 2.85" bolt circle and a motor length (excluding shaft) of approximately 4 1/3". It includes extended hubs with rubber rings designed for base mounting. The rotation is opposite the shaft end, accommodating specific replacement needs in refrigeration applications.

Warranty

1 Year Manufacturer Warranty
