1989P Nidec | 1/20 hp 1625 RPM 1-Speed 230V; 5.0" Condenser Motor

SKU:: 1989P
UPC:: 6.63E+11
Weight:: 9.00 LBS
Width:: 6.00 (in)
Height:: 6.00 (in)
Depth:: 10.00 (in)
Shipping:: Free Shipping
ON SALE:: LIMITED TIME DISCOUNT
Voltage:: 230V
Horsepower:: 1/20 HP
RPM:: 1625
Type:: Permanent Split Capacitor
Amperage:: 0.8 Amps
Bearings:: Sleeve Bearings
Speeds:: 1-Speed
Insulation Class:: Class B
Rotation:: Clockwise
Duty:: Continuous Duty

Current Stock:

Was: $300.15

Now: $267.72

Quantity:

Adding to cart… The item has been added

Description
Literature
Compliance & Restrictions

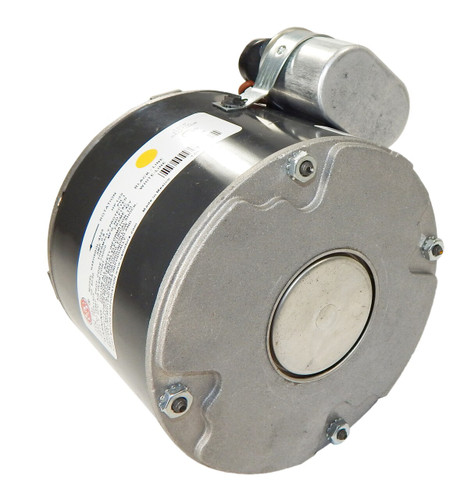

1989P Nidec 1/20 hp 1625 RPM 1-Speed 230V 5.0" Condenser Motor

This 1/20 horsepower condenser motor by Nidec operates at 1625 RPM with a single speed and 230V power supply. It serves as a reliable aftermarket replacement for various Copeland condenser motor models and is primarily designed for use in heat pumps and furnaces.

Key Specifications

Horsepower: 1/20 hp
RPM: 1625
Voltage: 230V
Amperage: 0.8 amps
Enclosure: Open
Frame / Diameter: 5.0" diameter
Shaft Dimensions: 1/2" x 2.5"
Rotation: Clockwise (CW) shaft end
Bearings: Sleeve bearings

Product Features & Fitment

This motor features a permanent split capacitor design with automatic overload protection, suitable for continuous duty operation. It includes a capacitor and comes with 48" leads for easy electrical connections. The motor case length measures 3.81", and it is rated for Class B insulation with a maximum ambient temperature of 40°C.
