3042 Nidec | 1/4 hp 1625 RPM 1-Speed 230V; 5.6" Condenser Motor
3042 Nidec | 1/4 hp 1625 RPM 1-Speed 230V; 5.6" Condenser Motor
3042 Nidec | 1/4 hp 1625 RPM 1-Speed 230V; 5.6" Condenser Motor
3042 Nidec | 1/4 hp 1625 RPM 1-Speed 230V; 5.6" Condenser Motor

Nidec

3042 Nidec | 1/4 hp 1625 RPM 1-Speed 230V; 5.6" Condenser Motor

(No reviews) Write a Review
$333.50
$297.97
SKU 3042
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230V
Horsepower 1/4 HP
RPM 1625
Type Permanent Split Capacitor
Amperage 1.4 Amps
Bearings Ball Bearings
Speeds 1-Speed
Insulation Class Class B
Rotation Clockwise
Duty Continuous Duty
Adding to cart… The item has been added
Description

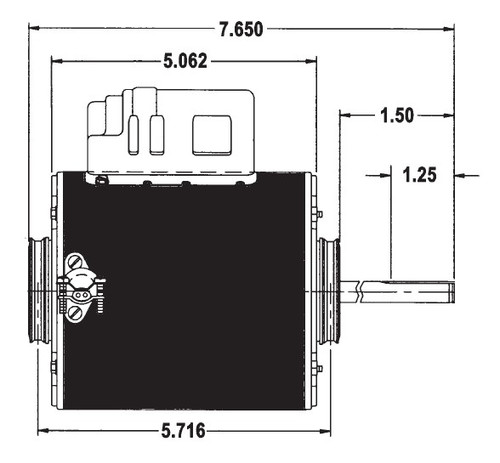

  • 1/4 hp 1625 RPM 1-Speed 230V 1.4 amps
  • Shaft 1/2" x 1.5"
  • Rotation: CW shaft end
  • 5.6" Diameter
  • Motor case length 5.062"
  • Ball Bearings
  • 2-1/4" dia Resilient Ring Mount
  • 4MFD 370V Capacitor REQUIRED (Our Part #4DV)
  • 1 Year mfg warranty

Permanent Split Capacitor Motor. Automatic Overload Protection. Continuous Duty; Open Enclosure; Class B Insulation; 40C Ambient Temperature; 60 Hertz. Application: Tyler A.C. Condenser fan motors. Suggested aftermarket replacement for 4KCP39EG755S, 5KCP39EN81S, 03042

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230V
Horsepower 1/4 HP
RPM 1625
Type Permanent Split Capacitor
Amperage 1.4 Amps
Bearings Ball Bearings
Speeds 1-Speed
Insulation Class Class B
Rotation Clockwise
Duty Continuous Duty
!
