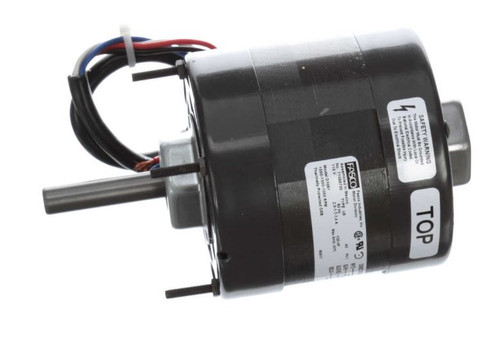

Fasco D1061 Motor | 1/ 20hp 1550 RPM 3-Speed CCW 4.4" Diameter 115V (Greenheck)

Fasco D1061 Motor | 1/20 HP 1550 RPM 3-Speed CCW 4.4" Diameter 115V (Greenheck)

The Fasco D1061 is a versatile 1/20 HP motor designed for attic exhaust fans, attic ventilation, and general-purpose single-phase applications. It serves as a direct replacement for several Greenheck and Dayton motor models, ensuring compatibility and reliable performance.

Key Specifications

• Horsepower: 1/20 HP
• RPM: 1550
• Voltage: 115V, 60Hz
• Amperage: 2.0 Amps
• Frame / Diameter: 4.4" Diameter
• Shaft Dimensions: 1/2" diameter x 2 3/4" length
• Rotation: Counter Clockwise (SE)
• Speed: 3-Speed

Product Features & Fitment

This motor features a stud/band mount with a bolt circle diameter of 3.89" and a motor length (excluding shaft) of 4 1/8". It is compatible as a suggested replacement for Greenheck fan models 7108-2425, 7108-6848, 7108-6730, and 7108-6857 (note that the shaft is 1/4" longer, so fit should be double-checked). It also directly replaces Greenheck motor 310800 and Dayton models 1AGF8, as well as Dayton vents 2RB53, 5DVP0, 5DVP1, 5DVP2, 5DVP3, 5DVR7, and 48GN26.

Cross Reference

• Greenheck Fan 7108-2425, 7108-6848, 7108-6730, 7108-6857 (1/4" longer, double check the fit)
• Greenheck Motor 310800
• Direct Replacement for Dayton 1AGF8
• Dayton Vents 2RB53, 5DVP0, 5DVP1, 5DVP2, 5DVP3, 5DVR7, 48GN26

Warranty

1 Year Manufacturer Warranty
