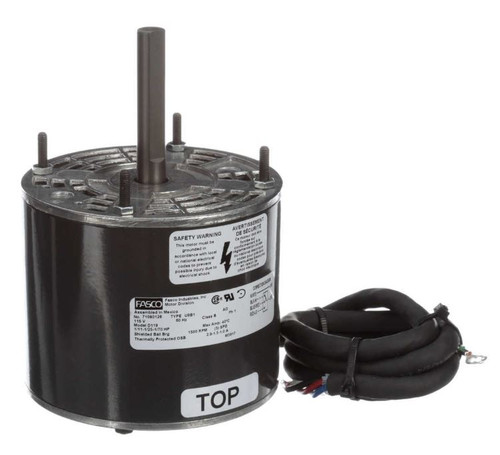

Fasco D119 Motor | 1/11 hp 1500 RPM 3-Speed CCW 4.4" Diameter 115V (Replaces Dayton 4M222)
The Fasco D119 is a 1/11 horsepower, 3-speed motor designed for attic exhaust and attic fan applications. It serves as a direct replacement for several models including Dayton 4M222 and Greenheck roof vent motors, ensuring reliable performance in ventilation systems.
Key Specifications
- Horsepower: 1/11 hp
- RPM: 1500
- Voltage: 115V, 60 Hz
- Amperage: 2.9 amps
- Frame / Diameter: 4.4" diameter
- Shaft Dimensions: 1/2" diameter x 2-5/8" length
- Rotation: Counterclockwise (CCW) shaft end
- Bearings: Ball bearings
Product Features & Fitment
This motor features a belly band or stud mount with a bolt circle diameter of 3.89". Mounting studs form a 2.75" x 2.75" square pattern, facilitating straightforward installation. The motor length excluding the shaft measures 3-3/4", making it compatible with various attic ventilation units from Acme Engineering and Greenheck.
Cross Reference
- Acme Engineering 2868-405-173
- Fasco 7108-2137, 7109-0063, 7109-0126
- Dayton 4M222, 4M222A
- Dayton 48GN77
- AO Smith/Century # 599, DB2E011
- Greenheck 300006, 300120, 300459
Warranty
1 Year Manufacturer Warranty
