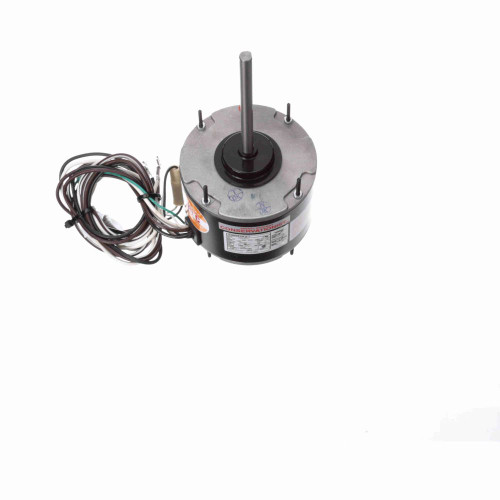

FEH1036SF Century 1/3 hp 1075 RPM, 1-Speed, 460V, 70°C Condenser Motor

FEH1036SF Century 1/3 hp 1075 RPM, 1-Speed, 460V, 70°C Condenser Motor

This Century 1/3 horsepower condenser motor is designed for use in heat pump, refrigeration, and condenser applications. It serves as a reliable replacement motor featuring a permanent split capacitor (PSC) design for efficient and quiet operation.

Key Specifications

• Horsepower: 1/3 hp
• RPM: 1075
• Voltage: 460V
• Amperage: 1.3 amps
• Enclosure: Totally Enclosed Air Over (TEAO)
• Shaft Dimensions: 1/2" diameter x 6.5" length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor includes a reversing plug and requires a 7.5 MFD, 370V capacitor (part number 7.5DV) for operation. It features Class F insulation and is rated for 70°C ambient temperature. The motor is an all-angle mount with extended through bolts and automatic overload protection, ensuring versatile installation and durability. Leads measure 48" for easy wiring connection.

Warranty

1 Year Manufacturer Warranty
