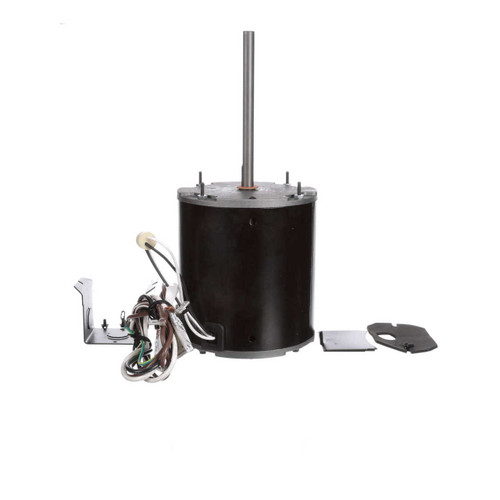

Model 791A Century 3/4 hp 1075 RPM, 1-Speed, 460V, 60°C Condenser Motor

Model 791A Century 3/4 hp 1075 RPM, 1-Speed, 460V, 60°C Condenser Motor

This Model 791A motor is a 3/4 horsepower, 1-speed condenser motor designed for use in heat pump and refrigeration applications. It serves as a reliable replacement for Century motors requiring a permanent split capacitor design with automatic overload protection.

Key Specifications

• Horsepower: 3/4 hp
• RPM: 1075
• Voltage: 460V
• Amperage: 2.5 amps
• Enclosure: Totally Enclosed Air Over (TEAO)
• Shaft Dimensions: 1/2" x 6.06"
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This PSC motor features Class B insulation and includes a conduit box for easy wiring. It requires a 10 MFD 370V capacitor (Part #10DV) for operation and comes with a reversing plug to accommodate different rotation needs. The motor supports all-angle mounting and includes extended thru bolts for secure installation. It is rated for operation in ambient temperatures up to 60°C.

Warranty

1 Year Manufacturer Warranty
