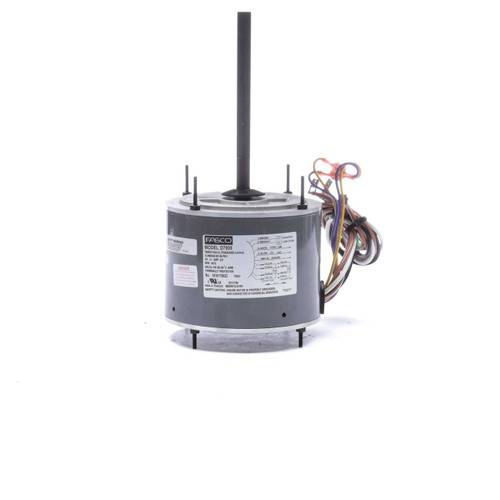

Fasco D7908 Motor | 1/3 hp 1075 RPM 5.6" Diameter 208-230 Volts

Fasco D7908 Motor | 1/3 hp 1075 RPM 5.6" Diameter 208-230 Volts

The Fasco D7908 is a 1/3 horsepower condenser fan motor designed for air conditioning applications. It serves as a reliable replacement motor featuring a totally enclosed, air-over design suitable for various mounting orientations.

Key Specifications

• Horsepower: 1/3 hp
• RPM: 1075
• Voltage: 208-230 Volts
• Amperage: 2.6 amps
• Enclosure: Totally enclosed, air over
• Frame / Diameter: 5.6" diameter
• Shaft Dimensions: 1/2" diameter x 6 1/2" length
• Rotation: Reversible
• Bearings: Ball bearings

Product Features & Fitment

This motor supports both belly band and base mounting options, with a bolt circle diameter of 5.2". It includes four drilled and tapped holes in the shell for secure installation. The motor is designed for shaft down or horizontal mounting and features all-angle mount bearings. A 7.5 MFD 370V capacitor (part #7.5DV) is required for operation but not included. The motor is CSA certified and UL recognized, rated for ambient temperatures up to 60 degrees Celsius.

Warranty

1 Year Manufacturer Warranty
