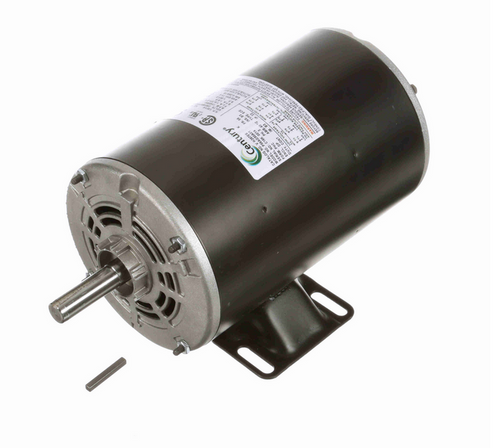

H267ES Century 1/3 hp 1200 RPM 3-Phase 56 Frame ODP (rigid base) 230/460V

SKU:
H267ES
Weight:
27.00 LBS
Shipping:
Free Shipping
ON SALE:
DISCOUNTED PRICES AND FREE GROUND SHIPPING
Was: $355.20
Now: $301.00
Adding to cart… The item has been added
  • 1/3 hp 1200 RPM, 1.4/0.7 amps 230/460 Volts 60hz. Three Phase
  • NEMA 56 frame, Keyed Shaft 5/8" Diameter x 1 5/8"
  • Service Factor: 1.35, Overload protection = None
  • Rigid Base, Reversible, Ball Bearings, Class B Insulation
  • 1 Year Manufacture Warranty

General purpose motors are for use in situations not having special requirements. This is a three phase motor with a rigid base mount. Shaft has keyway. Wiring diagram on motor name plate. ODP = Open Drip Proof. H267ES
