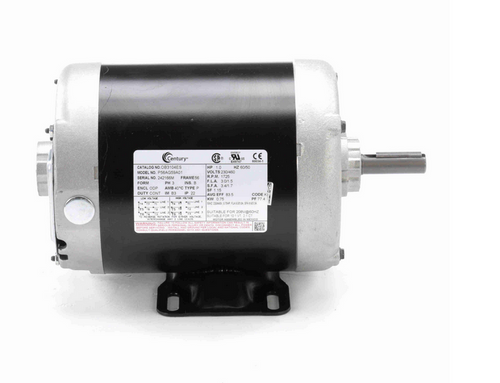

OB3104ES Century 1 hp 1800 RPM 3-Phase 56 Frame ODP (rigid base) 230/460V Century Motor # OB3104ES

OB3104ES Century 1 hp 1800 RPM 3-Phase 56 Frame ODP (rigid base) 230/460V Century Motor

This Century OB3104ES is a general-purpose 1 horsepower, 3-phase electric motor designed for industrial and HVAC applications requiring reliable performance. It replaces motors with similar specifications and is ideal for equipment needing a rigid base mount and open drip proof enclosure.

Key Specifications

• Horsepower: 1 hp
• RPM: 1800
• Voltage: 230/460 V
• Amperage: 3.0/1.5 A
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 56 frame
• Shaft Dimensions: Keyed shaft, 5/8" diameter x 1 5/8" length
• Rotation: Reversible
• Bearings: Ball bearings

Product Features & Fitment

This motor features a rigid base mount for secure installation and includes a keyed shaft for positive drive connection. It is equipped with Class B insulation and designed for 60 Hz operation. Wiring diagrams are provided on the motor nameplate to assist with proper electrical connections.

Warranty

1 Year Manufacturer Warranty
