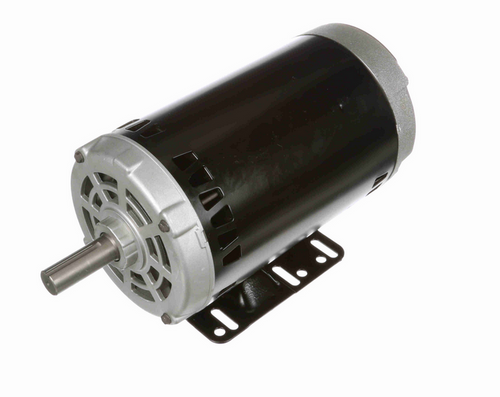

H887L Century 3 hp 1800 RPM 3-Phase 56 Frame ODP (rigid base) 200-230/460V Century Motor # H887L

H887L Century 3 hp 1800 RPM 3-Phase 56 Frame ODP (rigid base) Motor

This Century 3 horsepower, 1800 RPM, three-phase motor is designed for general-purpose industrial applications. It serves as a reliable replacement motor with a rigid base mount and open drip proof (ODP) enclosure.

Key Specifications

• Horsepower: 3 hp
• RPM: 1800
• Voltage: 200-230/460 V
• Amperage: 9.4-8.9/4.5 A
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 56 Frame
• Shaft Dimensions: 7/8" Diameter x 2.25" Length, keyed
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a rigid base for stable mounting and includes a keyed shaft for secure coupling. It is equipped with Class F insulation and an automatic overload protection system. Wiring diagrams are provided on the motor nameplate to assist with installation.

Warranty

1 Year Manufacturer Warranty
