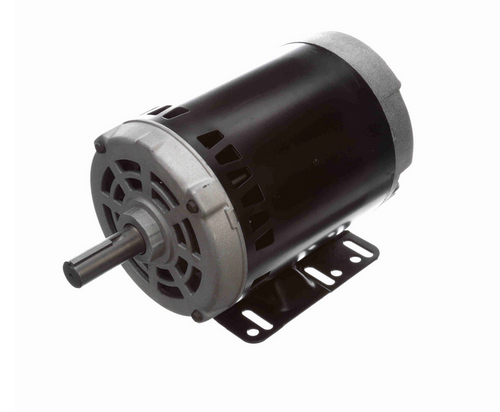

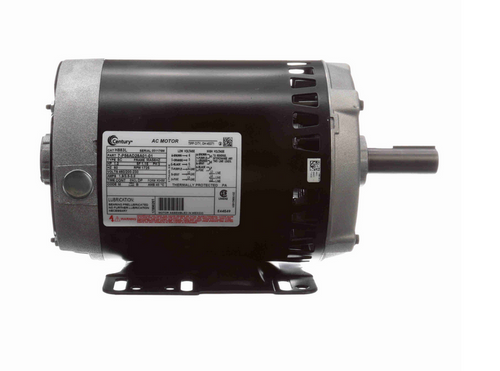

H883L Century 1 hp 1800 RPM 3-Phase 56 Frame ODP (rigid base) 200-230/460V Century Motor # H883L

H883L Century 1 hp 1800 RPM 3-Phase 56 Frame ODP (Rigid Base) Motor

This Century 1 horsepower, 1800 RPM, three-phase motor is designed for general-purpose industrial applications requiring reliable performance. It is a direct replacement motor featuring a rigid base mount and an open drip proof (ODP) enclosure.

Key Specifications

• Horsepower: 1 hp
• RPM: 1800
• Voltage: 208-230/460 V
• Amperage: 3.8-3.5/1.9 A
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 56 Frame
• Shaft Dimensions: 5/8" Diameter x 1 5/8" Length, Keyed Shaft
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a rigid base for stable mounting and includes a keyed shaft for secure coupling. It is equipped with Class B insulation and automatic overload protection. Wiring diagrams are provided on the motor nameplate to assist with installation.

Warranty

1 Year Manufacturer Warranty
