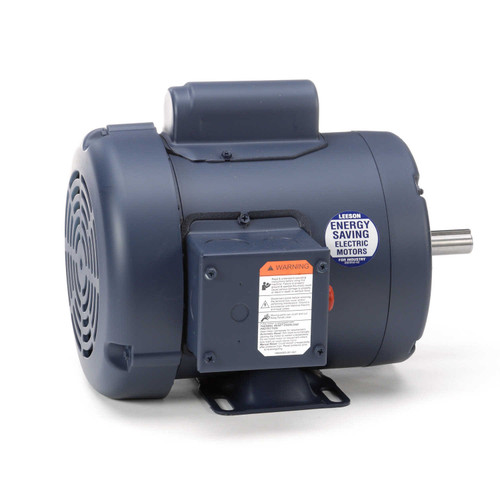

113908.00 Leeson | 1/3 hp 1425 RPM 56 Frame TEFC Rigid Base 110/220V 50hz.
113908.00 Leeson | 1/3 hp 1425 RPM 56 Frame TEFC Rigid Base 110/220V 50hz.
113908.00 Leeson | 1/3 hp 1425 RPM 56 Frame TEFC Rigid Base 110/220V 50hz.
113908.00 Leeson | 1/3 hp 1425 RPM 56 Frame TEFC Rigid Base 110/220V 50hz.
113908.00 Leeson | 1/3 hp 1425 RPM 56 Frame TEFC Rigid Base 110/220V 50hz.
113908.00 Leeson | 1/3 hp 1425 RPM 56 Frame TEFC Rigid Base 110/220V 50hz.
113908.00 Leeson | 1/3 hp 1425 RPM 56 Frame TEFC Rigid Base 110/220V 50hz.
113908.00 Leeson | 1/3 hp 1425 RPM 56 Frame TEFC Rigid Base 110/220V 50hz.

Leeson

113908.00 Leeson | 1/3 hp 1425 RPM 56 Frame TEFC Rigid Base 110/220V 50hz.

(No reviews) Write a Review
$575.00
$482.94
SKU 113908
UPC 6.92E+11
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 110/220V
Horsepower 1/3 HP
RPM 1425
Frame 56
Enclosure TEFC
Hertz 50 Hz
Amperage 6.4/3.2 Amps
Bearings Ball Bearings
Service Factor 1.0
Insulation Class Class B
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 1/3 hp 1425 RPM, 6.4/3.2 amps, 110/220V 50 hz. (will not operate @ 60hz)
  • NEMA 56 Frame Keyed Shaft 5/8" Diameter x 1 7/8"
  • Service Factor: 1.0 - overload protection = Manual
  • Reversible - Rigid Base Mount - Ball Bearings - Class B Insulation
  • TEFC = Totally Enclosed Fan Cooled
  • 1 Year Manufacture Warranty

This motor is rated for 50 hz. Power systems and will not operate on 60 hz. Operation on 60 hz. Will damage the motor.

M6C14FB22E, 113908.00

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 110/220V
Horsepower 1/3 HP
RPM 1425
Frame 56
Enclosure TEFC
Hertz 50 Hz
Amperage 6.4/3.2 Amps
Bearings Ball Bearings
Service Factor 1.0
Insulation Class Class B
Mounting Rigid Base
!
